| Manufacturer Name | CROUSE-HINDS ECM & LTG |
| MfgPartNo | AREA6424 |
| Additional Information | Overall Dimension 8-7/8 Inch Width x 10-1/2 Inch Height; Application Chemical Plant, Compressor, Conveyor, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Motor Generator Set, Process Industry, Welder; Approval UL 1682/ |
| Amperage Rating | 60 A |
| Application | Ind Facilities & Factories - Facility: Power Distribution and Control |
| Base Price | 0.0000 |
| Brand Name | Arktite[R] |
| Catalog Number | AREA6424 |
| Commerce Sector | Construction Materials |
| Commodity Code | 51500 |
| Commodity Description | Pin & Sleeve Devices |
| Connection | Pressure, Crimp/Solder |
| Constructional Feature | Corrosion Resistant, Dirt Tight, Dust Tight, Moisture Resistant, Weatherproof |
| CountryOfOrigin | MUL |
| Current Rating | 60 Amp |
| DDCATEGORY | 576 |
| Decorative Color | Natural |
| Depth | 8-7/8 in |
| Dimensions | 8.8800 IN X 5.8800 IN X 9.4400 IN |
| Directory | CIS |
| Door Type | Spring Door |
| Families | 576 |
| Family Description | Pin & Sleeve Devices |
| Grounding Style | 2, Shell, Extra Pole |
| Height | 7 in |
| Hub Type | (1) 1-1/4 Inch Top |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 60A 3W4P ARKTE RCPT ASSY 1 1/4;RCPT ASSEM |
| Item Number | 04084 |

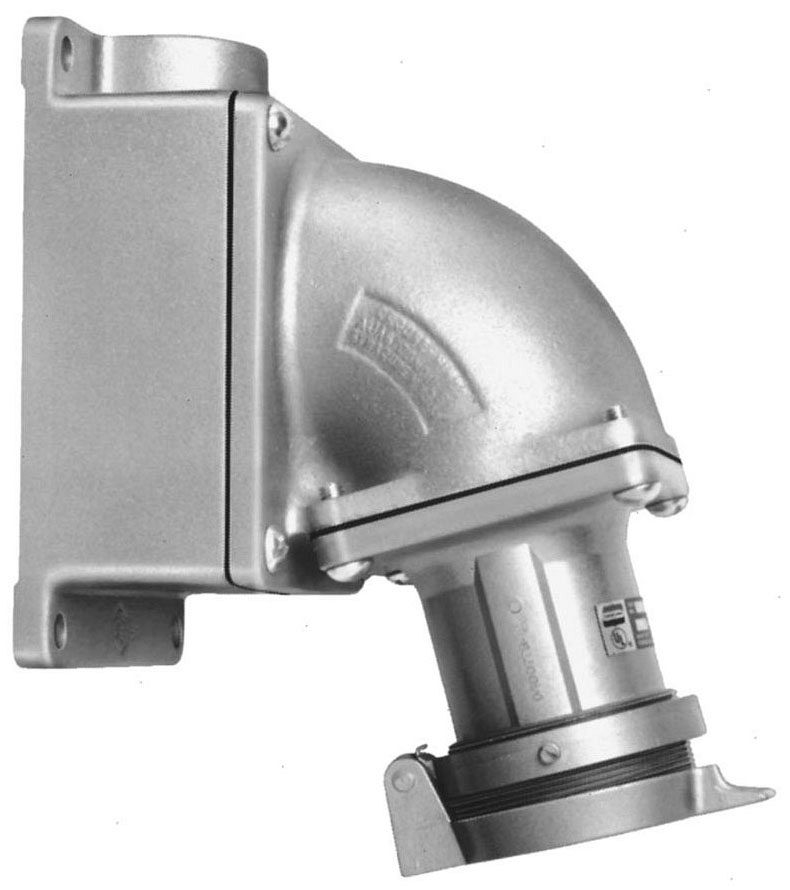

| Long Description | RECEPTACLE BOX ASSEMBLY, POLARIZED, ANGLED TYPE; NATURAL CAST ALUMINUM (BACK BOX), NATURAL COPPER-FREE ALUMINUM (RECEPTACLE) MATERIAL; 3 WIRE(S); 600 VOLT AC AT 50 TO 400 HERTZ, 250 VOLT DC VOLTAGE RATING; 60 AMP CURRENT RATING; 4 POLE(S) |
| MSDS Form Number | * |
| Material | Natural Cast Aluminum (Back Box), Natural Copper-Free Aluminum (Receptacle) |
| Material Quality | Copper-free Aluminum |
| Model | AREA |
| Noun | * |
| Number Of Poles | 4 |
| Number Of Wires | 3 |
| Product Description | RCPT ASSEM |
| Product Keywords | WEBREADY |
| Product Name | Electrical receptacles |
| ProductLine | CRS-H |
| Special Features | Heavy-Duty, Watertight, Grounding Style 2, NEMA 4 Enclosure, With AJ Back Box and Angle Adapter, Spring Door, 1-1/4 In Hub |
| Standard | UL 1682, UL 1686, CSA C22.2, CE |
| Type | Receptacle assembly;Polarized, Angled |
| UNSPSC | 39121406 |
| UPC | 78227404084 |
| Vendor Name | EATON CROUSE-HINDS INDUSTRIAL |
| Vendor Number | 782274 |
| Vendor Short Name | CRS-H |
| Voltage Rating | 600 Vac at 50 To 400 Hz, 250 Vdc;600 Volt AC at 50 to 400 Hertz, 250 Volt DC |
| Width | 5-7/8 in |
| Wire Size | 6 To 4 AWG (Building), 8 To 4 AWG (Extra Flex) |
