| Manufacturer Name | CROUSE-HINDS ECM & LTG |
| MfgPartNo | CGB2015 |
| Additional Information | Applicable Standard NEC 501.10 |
| Application | Ind Facilities & Factories - Industrial Facilities/Factories - Other |
| Approval | UL (Canada and US) |
| Base Price | 0.0000 |
| Cable Outer Diameter | 0.5 to 0.63 Inch |
| Cable Type | Non-Armored, Tray |
| Catalog Number | CGB2015 |
| Commerce Sector | Construction Materials |
| Commodity Code | 24900 |
| Commodity Description | Cable & Cord Grips |
| Connection | Male NPT |
| Constructional Feature | Watertight |
| CountryOfOrigin | US |
| DDCATEGORY | 130 |
| Dimensions | 1.6300 IN X 1.0500 IN X 1.0500 IN |
| Directory | CIS |
| Enclosure | Class I Div 2;NEMA 3R |
| Families | 130 |
| Family Description | Cable & Cord Grips |
| Finish | Zinc Electroplated With Chromate Coated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3/4 NPT MALE CLAMP FOR PORTABLE CORD;3/4 .500-.625 CORDCON |
| Item Number | 13660 |

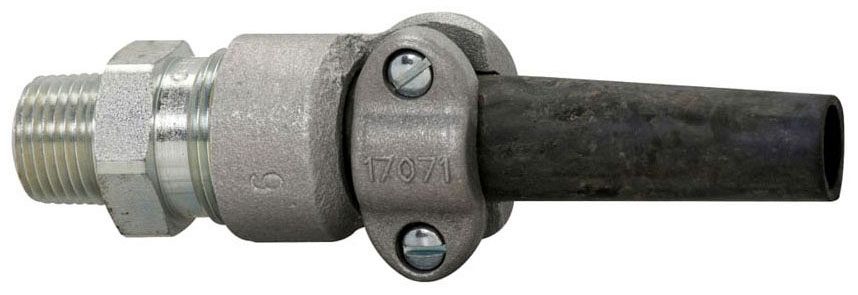

| Long Description | CORD CONNECTOR, STRAIGHT TYPE; ZINC ELECTROPLATED CHROMATE STEEL MATERIAL; NON-ARMORED, TRAY CABLE TYPE; UL (CANADA AND US) APPROVAL; NEMA 3R ENCLOSURE; 3/4 INCH THREAD SIZE; -25 TO 40 DEG C OPERATING TEMPERATURE; WATERTIGHT |
| MSDS Form Number | * |
| Material | Steel Body and Gland Nut, Neoprene Seal;Zinc Electroplated Chromate Steel |
| Model | CGB |
| Noun | * |
| Operating Temperature | -25 to 40 Deg C |
| Product Description | 3/4 .500-.625 CORDCON |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | CRS-H |
| Size | 3/4 In |
| Special Features | Non-Armored Gland, With Sealing Gasket, Cord Size 0.875 To 1.000 In |
| Standard | UL (CANADA AND US), CUL |
| Temperature Rating | -25 To 40 Deg C |
| Thread Size | 3/4 Inch |
| Type | Portable cord connector;Straight |
| UNSPSC | 39121311 |
| UPC | 78227413660 |
| Vendor Name | EATON CROUSE-HINDS INDUSTRIAL |
| Vendor Number | 782274 |
| Vendor Short Name | CRS-H |
