| Manufacturer Name | CROUSE-HINDS ECM & LTG |
| MfgPartNo | DSD934 |
| Action | DP |
| Additional Information | Current Rating 20 Amp at 120/277 Volt AC; Mounting Type Surface; Number of Poles 2 |
| Amperage Rating | 20 A |
| Application | Ind Facilities & Factories - Facility: Power Distribution and Control |
| Approval | UL 1203, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Eaton |
| Catalog Number | DSD934 |
| Commerce Sector | Construction Materials |
| Commodity Code | 42260 |
| Commodity Description | Selector Switch Components |
| Constructional Feature | Explosionproof, Dust Ignitionproof, Rain Tight |
| CountryOfOrigin | MUL |
| DDCATEGORY | 2157 |
| Dimensions | 5.0000 IN X 3.0000 IN X 3.5000 IN |
| Directory | CIS |
| Enclosure | Class I Div 1 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G;Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G |
| Families | 2157 |
| Family Description | Selector Switch Components |

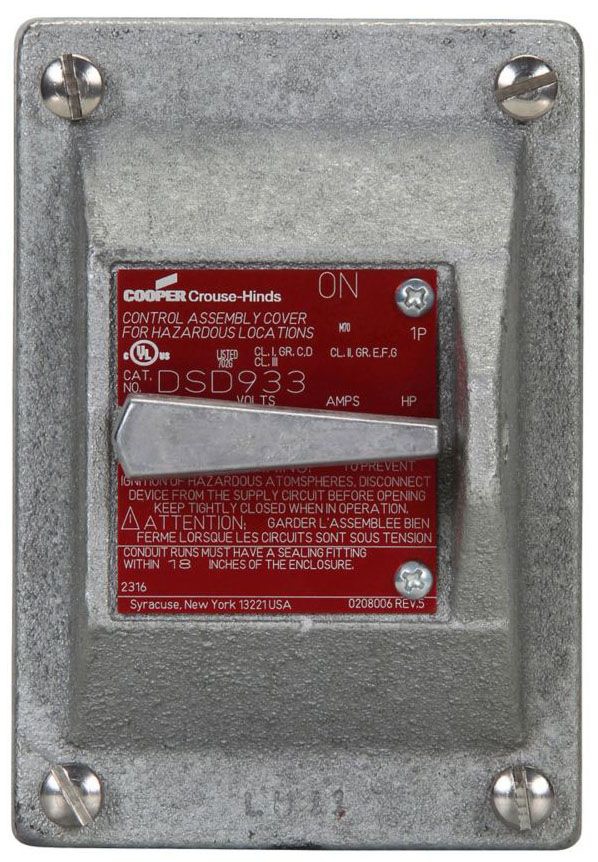

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | DSD COVER DEV SUB ASSY FR OPER SNAP SWTC;2P PB SWITCH IRON U.S. |
| Item Number | 04508 |
| Long Description | CONTROL STATION SNAP SWITCH COVER ASSEMBLY, ELECTROGALVANIZED AND ALUMINUM ACRYLIC PAINTED FERALOY IRON ALLOY MATERIAL; EDS/EFS SERIES CONTROL STATION USED ON; UL 1203, CSA C22.2 APPROVAL |
| MSDS Form Number | * |
| Material | Feraloy;Electrogalvanized and Aluminum Acrylic Painted Feraloy Iron Alloy |
| Model | DSD |
| Noun | * |
| Number Of Poles | 2 |
| Product Description | 2P PB SWITCH IRON U.S. |
| Product Keywords | WEBREADY |
| Product Name | Snap switch |
| ProductLine | CRS-H |
| Special Features | Material Copper-Free Aluminum |
| Standard | UL 1203, CSA C22.2 |
| Sub Brand | Crouse-Hinds series |
| Type | Snap switch cover and device sub-assembly |
| UNSPSC | 39122209 |
| UPC | 78227404508 |
| Used On | EDS/EFS Series Control Station |
| Vendor Name | EATON CROUSE-HINDS INDUSTRIAL |
| Vendor Number | 782274 |
| Vendor Short Name | CRS-H |
| Voltage Rating | 120/277 VAC |
