| Manufacturer Name | CROUSE-HINDS ECM & LTG |
| MfgPartNo | E1016-8367 |
| Additional Information | Locked Contact Pulling Force 1000 Lb; Temperature Rating -40 to 105 Deg C |
| Amperage Rating | 400 A |
| Application | Ind Facilities & Factories - Facility: Power Distribution and Control;Portable Power, Entertainment, Motor, Generator |
| Approval | UL 1691, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Cam-Lok[TM] |
| Cable Size | 2/0 to 4/0 AWG |
| Catalog Number | E1016-8367 |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Connection | Double Set Screw |
| Connection Type | Double Set Screw |
| Contact Material | Brass |
| CountryOfOrigin | US |
| Current Rating | 400 Ampere (Continuous) |
| DDCATEGORY | 574 |
| Dimensions | 7.1800 IN X 1.5000 IN X 1.5000 IN |
| Directory | CIS |
| Enclosure | NEMA 3R |
| Environmental Conditions | -40 To 105 Deg C |
| Families | 574 |
| Family Color | White |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Image Location | * Image |
| Industry | ELX |
| Insulator Color | White |
| Insulator Material | Thermoplastic Elastomer |
| InvoiceDescription | E1016 M P NV DSS 2/0 TO 4/0 WH;#2/0-4-0 WHT M PLUG |
| Item Number | 13173 |

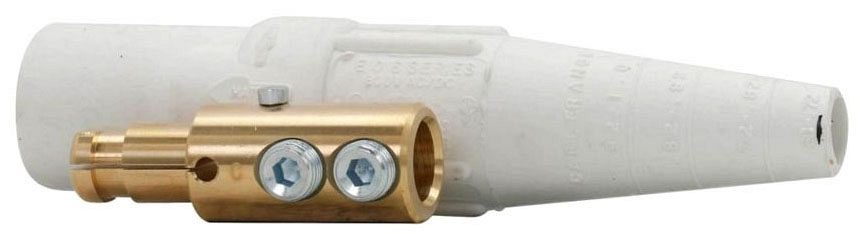

| Long Description | PLUG, MALE TYPE; 1.5 INCH DIA X 7.18 INCH L SIZE; DOUBLE SET SCREW CONNECTION TYPE; 2/0 TO 4/0 AWG CABLE SIZE; UL 1691, CSA C22.2 APPROVAL; PORTABLE POWER, ENTERTAINMENT, MOTOR, GENERATOR APPLICATION; 600 VAC/VDC VOLTAGE RATING; NON-VULCANIZED PROCESS |
| MSDS Form Number | * |
| Material Quality | Thermoplastic Elastomer (tpe) |
| Model | E1016 |
| Noun | * |
| Number Of Poles | 1 |
| Process | Non-Vulcanized |
| Product Description | #2/0-4-0 WHT M PLUG |
| Product Keywords | WEBREADY |
| Product Name | Electrical receptacles |
| ProductLine | CRS-H |
| Size | 1.50 In Diameter X 7.18 In Length;1.5 Inch Dia x 7.18 Inch L |
| Special Features | NEMA 3R Enclosure |
| Standard | UL, CSA |
| Temperature Rating Maximum | 221.00000 F |
| Temperature Rating Minimum | -40.00000 F |
| Type | Plug;Male |
| UNSPSC | 39121406 |
| UPC | 66227513173 |
| Vendor Name | EATON CROUSE-HINDS MOLDED PRODUCTS |
| Vendor Number | 662275 |
| Vendor Short Name | CMP |
| Voltage Rating | 600 Vac/Vdc;600 VAC/VDC |
| Wire Size | 2/0 To 4/0 AWG |
