| Manufacturer Name | CROUSE-HINDS ECM & LTG |
| MfgPartNo | EDSC2184 |
| Additional Information | Includes Neoprene Cover |
| Application | Ind Facilities & Factories - Facility: Power Distribution and Control |
| Approval | UL 1203, CSA C22.2 |
| Base Price | 0.0000 |
| Box Type | Single Gang |
| Catalog Number | EDSC2184 |
| Commerce Sector | Construction Materials |
| Commodity Code | 42310 |
| Commodity Description | Control Station Complete Assemblies |
| Constructional Feature | Explosionproof, Dust-Ignitionproof, Raintight, Wet Location |
| Contact Configuration | 1NO-1NC, Universal |
| CountryOfOrigin | US |
| DDCATEGORY | 2161 |
| Dimensions | 6.7200 IN X 3.5000 IN X 5.8100 IN |
| Directory | CIS |
| Enclosure | Class I Div 1 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G;Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F9G |
| Enclosure Material | Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy |
| Families | 2161 |
| Family Description | Control Station Complete Assemblies |
| Height | 3-1/16 in |
| Hub Size | 3/4 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3/4 THRU CST IRON DIV 1 SNGL UNIV PB;1G PB STATION |
| Item Number | 76567 |

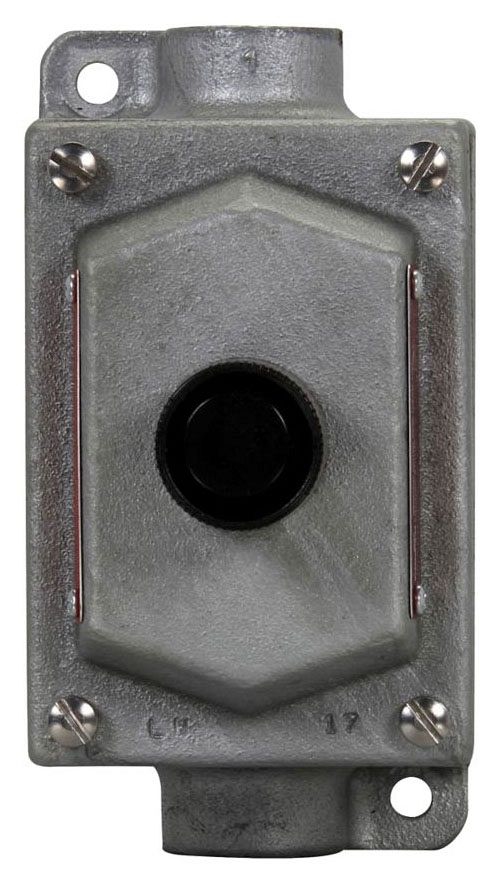

| Long Description | PUSH BUTTON CONTROL STATION, FEED-THROUGH TYPE; 1NO-1NC, UNIVERSAL CONTACT CONFIGURATION; 3/4 INCH HUB SIZE; ELECTROGALVANIZED ALUMINUM ACRYLIC PAINTED FERALOY IRON ALLOY ENCLOSURE MATERIAL; UL 1203, CSA C22.2 APPROVAL; 600 VAC VOLTAGE RATING |
| MSDS Form Number | * |
| Material Quality | Feraloy iron alloy |
| Model | Pushbutton control station;EDS |
| Noun | * |
| Number Of Circuits | 1 |
| Operator Type | Front Operated Button |
| Product Description | 1G PB STATION |
| Product Keywords | WEBREADY |
| Product Name | Push button switch |
| ProductLine | CRS-H |
| Special Features | Single Gang, (2) Circuit Universal, 3/4 In Hub, Material Copper-Free Aluminum |
| Standard | UL 1203, CSA C22.2 |
| Type | Feed-Through |
| UNSPSC | 39122216 |
| UPC | 78227476567 |
| Vendor Name | EATON CROUSE-HINDS INDUSTRIAL |
| Vendor Number | 782274 |
| Vendor Short Name | CRS-H |
| Voltage Rating | 600 Vac;600 VAC |
| Width | 3-1/2 in |
