| Manufacturer Name | CROUSE-HINDS ECM & LTG |
| MfgPartNo | GUAC59 |
| Additional Information | Constructional Feature Explosionproof, Dust-Ignitionproof, Rain Tight; Includes Cover, Green Grounding Screw; Application Wet Location, Hazardous/Classified Location; Applicable Standard ANSI C33.27, NEC/CEC |
| Application | Ind Facilities & Factories - Industrial Facilities/Factories - Other |
| Approval | UL 1203, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Condulet[R] |
| Cable Entry | Feed Through |
| Catalog Number | GUAC59 |
| Commerce Sector | Construction Materials |
| Commodity Code | 26000 |
| Commodity Description | Cast Boxes |
| Construction | Explosionproof, Dust-Ignitionproof, Raintight |
| CountryOfOrigin | US |
| Cover Opening Diameter | 5 Inch |
| Cover Type | Externally Threaded |
| Cubic Capacity | 77.8 in3 |
| DDCATEGORY | 136 |
| Dimensions | 7.8800 IN X 4.0300 IN X 5.7500 IN |
| Directory | CIS |
| Enclosure | Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/7C/7D/9E/9F/9G |
| Families | 136 |
| Family Description | Cast Boxes |
| Hub Location | Feed-Through |
| Hub Size | 1-1/2 Inch |
| Hub Type | Taper Threaded |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | "1 1/2 CST IRON ROUND BASE OUTLET 5"" CVR";1-1/2 GUAC CND BDY&CVR |
| Item Number | 46270 |

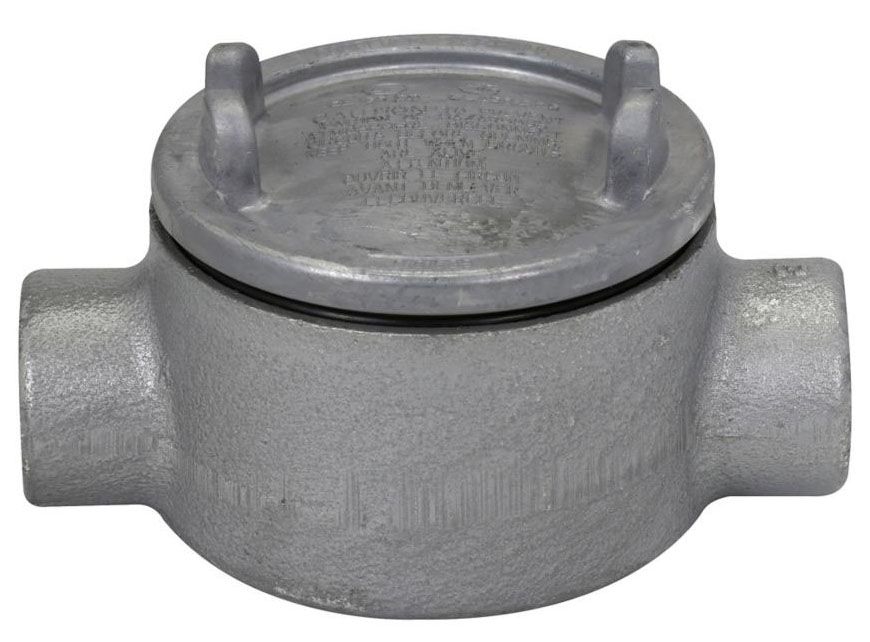

| Long Description | RIGID CONDUIT OUTLET BOX AND COVER, ELECTROGALVANIZED ALUMINUM ACRYLIC PAINTED FERALOY IRON ALLOY (BODY), NATURAL COPPER-FREE ALUMINUM (COVER) MATERIAL; ROUND SHAPE; 1-1/2 INCH HUB SIZE; 2 HUB(S); UL 1203, CSA C22.2 APPROVAL; (4) PAD MOUNTING |
| MSDS Form Number | * |
| Material | Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body), Natural Copper-Free Aluminum (Cover) |
| Material Quality | Feraloy Iron Alloy |
| Model | GUA |
| Mounting | Pad;(4) Pad |
| Noun | * |
| Number Of Hubs | 2 |
| Product Description | 1-1/2 GUAC CND BDY&CVR |
| Product Keywords | WEBREADY |
| Product Name | Outlet boxes |
| ProductLine | CRS-H |
| Shape | Round |
| Size | 1-1/2 In |
| Special Features | With Cover, Cover Opening Diameter 5 In |
| Standard | UL 886, CSA C22.2 |
| Style | C |
| Type | Conduit outlet box with cover |
| UNSPSC | 39121308 |
| UPC | 78227446270 |
| Vendor Name | EATON CROUSE-HINDS INDUSTRIAL |
| Vendor Number | 782274 |
| Vendor Short Name | CRS-H |
