| Manufacturer Name | CROUSE-HINDS ECM & LTG |
| MfgPartNo | NPJ10486 |
| Additional Information | AREA OF APPLICATION CEMENT PLANT, CHEMICAL PLANT, FOOD PROCESSING PLANT, PULP AND PAPER PLANT, SEWAGE PLANT; COLOR GRAY; ENCLOSURE NEMA 4X; WET AND DAMP LOCATION WHEN USED WITH SPRING DOOR OR SNAP ON CAP, WATER TIGHT WHEN USED WITH QE THREADED CAP |
| Amperage Rating | 100 A |
| Application | Ind Facilities & Factories - Facility: Power Distribution and Control |
| Approval | UL 1010, UL 1682, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Arktite. |
| Catalog Number | NPJ10486 |
| Commerce Sector | Construction Materials |
| Commodity Code | 51500 |
| Commodity Description | Pin & Sleeve Devices |
| Constructional Feature | CORROSION RESISTANT, DIRT TIGHT, DUST TIGHT, MOISTURE RESISTANT |
| Cord Type | 0.930 To 1.210 In |
| CountryOfOrigin | US |
| Current Rating | 100 AMPERE |
| DDCATEGORY | 576 |
| Dimensions | 11.2500 IN X 4.2500 IN X 4.2500 IN |
| Directory | CIS |
| Families | 576 |
| Family Description | Pin & Sleeve Devices |
| Grounding Style | 2, EXTRA POLE |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 100A 3W4P ARK NONMET PLG DIA. .93-1.21;3W-4P PLUG |
| Item Number | 74621 |
| Length | 25-1/4 in |
| Long Description | CIRCUIT BREAKER MATING PLUG, CIRCUIT BREAKING, CONVEYOR, MOTOR, PUMP, WELDER TYPE; NATURAL KRYDON. MATERIAL; 0.93 INCH MIN. CABLE OUTER DIAMETER; 1.21 INCH MAX. CABLE OUTER DIAMETER; 3 WIRE(S); UL 1010, UL 1682, CSA C22.2 APPROVAL |
| MSDS Form Number | * |
| Material | Krydon fiberglass-reinforced polyester;NATURAL KRYDON. |
| Maximum Cable Outer Diameter | 1.21 INCH |
| Minimum Cable Outer Diameter | 0.93 INCH |
| Model | NPJ |
| Noun | * |
| Number Of Poles | 4 |
| Number Of Wires | 3 |

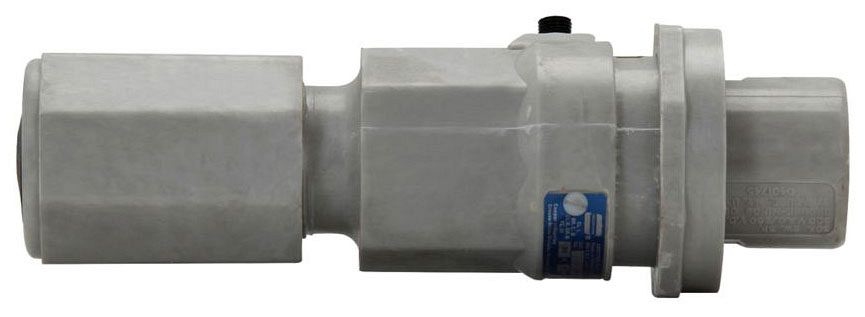

| Product Description | 3W-4P PLUG |
| Product Keywords | WEBREADY |
| Product Name | Electrical plugs |
| ProductLine | CRS-H |
| Special Features | Watertight, Grounding Style 2, NEMA 4X Enclosure |
| Standard | UL 1010, UL 1682, CSA C22.2 |
| Type | Plug;CIRCUIT BREAKING, CONVEYOR, MOTOR, PUMP, WELDER |
| UNSPSC | 39121402 |
| UPC | 78227474621 |
| Vendor Name | EATON CROUSE-HINDS INDUSTRIAL |
| Vendor Number | 782274 |
| Vendor Short Name | CRS-H |
| Voltage Rating | 600 Vac at 50 To 400 Hz, 250 Vdc;600 VAC AT 50 TO 400 HZ/250 VDC |
| Wire Size | 4 To 1 AWG (Building), 4 To 2 AWG (Extra Flex) |
