| Manufacturer Name | CROUSE-HINDS ECM & LTG |
| MfgPartNo | TMCX075 1 |
| Additional Information | Application Hazardous Location; Thread Length 1 Inch; Cable Range Over Armored 0.4 to 0.86 Inch; Nut Size 1.75 Inch (Width Across Corner); Seal Material Neoprene; Compound Type TSC |
| Application | Ind Facilities & Factories - Industrial Facilities/Factories - Other |
| Approval | UL (Canada and US) |
| Base Price | 0.0000 |
| Brand Name | Terminator[TM] |
| Cable Outer Diameter | 0.49 to 0.9 Inch |
| Cable Type | Metal Clad, Non-Armored, TECK, Tray Cable |
| Catalog Number | TMCX075 1 |
| Color | Natural With Red Union Nut |
| Commerce Sector | Construction Materials |
| Commodity Code | 24200 |
| Commodity Description | Bx, Mc, Armored Cable Fittings |
| Connection | Cable OD 0.65 to 1.18 inch |
| Constructional Feature | Liquidtight |
| CountryOfOrigin | US |
| DDCATEGORY | 1136 |
| Dimensions | 4.0500 IN X 1.7500 IN X 1.7500 IN |
| Directory | CIS |
| Enclosure | Class I Div 1 Group A B C D, Class II Group E F G, Class III, Class I Zone 1 Group IIC, NEMA 6P |
| Families | 1136 |
| Family Description | Bx, Mc, Armored Cable Fittings |
| Finish | Untreated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | BARR GLAND 3/4 NPT SZ1 ALU TSC;3/4 CBL GLND |
| Item Number | 29735 |
| Length | 4.05 Inch |

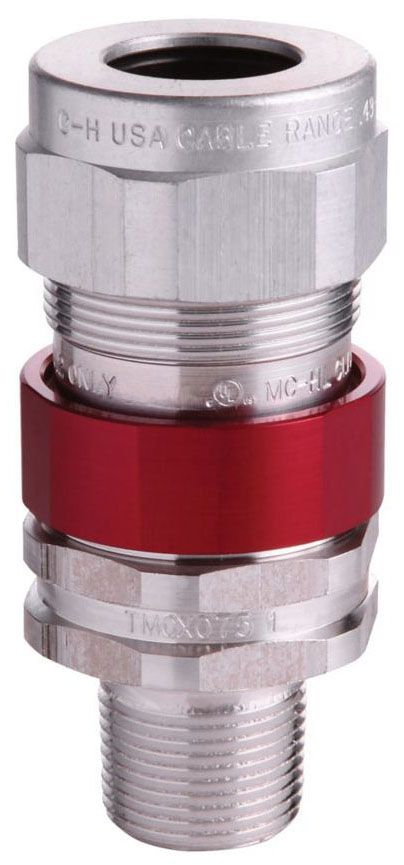

| Long Description | CABLE GLAND, STRAIGHT, THREADED MALE TYPE; ALUMINUM MATERIAL; 4.05 INCH; METAL CLAD, NON-ARMORED, TECK, TRAY CABLE CABLE TYPE; UL (CANADA AND US) APPROVAL |
| MSDS Form Number | * |
| Material | Aluminum |
| Material Quality | Aluminium with putty compound |
| Model | TMCX |
| Mounting | 3/4 inch NPT |
| Noun | * |
| Operating Temperature | -40 to 60 Deg C |
| Product Description | 3/4 CBL GLND |
| Product Keywords | WEBREADY |
| Product Name | Cable gland connectors |
| ProductLine | CRS-H |
| Size | "3/4"" NPT, Size 1" |
| Special Features | 2 Piece Union Design |
| Standard | UL and cUL Class 1, Div 1 (ABCD) Class 2 (EFG) |
| Temperature Rating | -40 to + 60 Degrees C |
| Thread Size | 3/4 Inch |
| Type | Cable gland;Straight, Threaded Male |
| UNSPSC | 39121431 |
| UPC | 66227629735 |
| Vendor Name | EATON CROUSE-HINDS INDUSTRIAL PRODUCTS |
| Vendor Number | 662276 |
| Vendor Short Name | CIP |
