| Manufacturer Name | CROUSE-HINDS ECM & LTG |
| MfgPartNo | XJG24 SA |
| Additional Information | Color Natural; Application Wet Location; Applicable Standard NEMA FB-1 |
| Application | Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other |
| Approval | UL 514B, CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | XJG24 SA |
| Commerce Sector | Construction Materials |
| Commodity Code | 22200 |
| Commodity Description | Rigid Aluminum Conduit Fittings |
| Constructional Feature | Weatherproof |
| CountryOfOrigin | US |
| DDCATEGORY | 122 |
| Diameter | 2.12 Inch |
| Dimensions | 8.3000 IN X 5.1000 IN X 3.4000 IN |
| Directory | CIS |
| Enclosure | NEMA FB1 |
| Families | 122 |
| Family Description | Rigid Aluminum Conduit Fittings |
| Ground Type | Internally Grounded Tinned Copper Braid |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3/4 AL CND EXP JNT INT GRD MAX CND MVT 4;3/4 EXPANSION JOINT |
| Item Number | 91576 |
| Length | 6.75 Inch |
| Long Description | RIGID CONDUIT EXPANSION JOINT, THERMAL EXPANSION/CONTRACTION TYPE; COPPER-FREE ALUMINUM (BODY/GLAND NUT/REDUCER), ELECTROGALVANIZED STEEL (WASHER/BUSHING), ELECTROGALVANIZED PHOSPHOR BRONZE (GROUND SPRING), PTFE (PACKING), VELLUM (GASKET) MATERIAL |
| MSDS Form Number | * |
| Material | Copper Free Aluminum;Copper-Free Aluminum (Body/Gland Nut/Reducer), Electrogalvanized Steel (Washer/Bushing), Electrogalvanized Phosphor Bronze (Ground Spring), PTFE (Packing), Vellum (Gasket) |
| Maximum Movement | 4 Inch |
| Model | XJG |
| Noun | * |

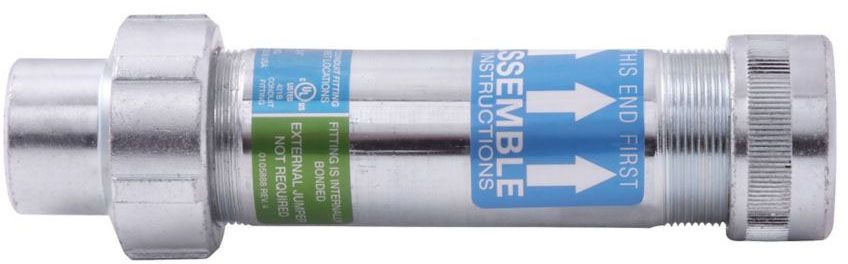

| Product Description | 3/4 EXPANSION JOINT |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | CRS-H |
| Standard | UL 514B, CSA C22.2 |
| Trade Size | 3/4 Inch |
| Type | Expansion coupling;Thermal Expansion/Contraction |
| UNSPSC | 39121311 |
| UPC | 78227491576 |
| Used On | Rigid/IMC Metal Conduit |
| Vendor Name | EATON CROUSE-HINDS INDUSTRIAL |
| Vendor Number | 782274 |
| Vendor Short Name | CRS-H |
