| Manufacturer Name | CROUSE-HINDS ECM & LTG |
| MfgPartNo | XJG34 SA |
| Additional Information | Applicable Standard NEMA FB1; Application Wet Location |
| Application | Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other |
| Approval | UL 514B, CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | XJG34 SA |
| Commerce Sector | Construction Materials |
| Commodity Code | 22200 |
| Commodity Description | Rigid Aluminum Conduit Fittings |
| Constructional Feature | Weatherproof |
| CountryOfOrigin | US |
| DDCATEGORY | 122 |
| Diameter | 2.43 Inch |
| Dimensions | 7.3800 IN X 2.4300 IN X 2.4300 IN |
| Directory | CIS |
| Enclosure | NEMA FB1 |
| Families | 122 |
| Family Description | Rigid Aluminum Conduit Fittings |
| Ground Type | Internally Grounded Tinned Copper Braid |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1 AL CND EXP JNT INT GRD MAX CND MVT 4;1-IN EXPANSION JOINT |
| Item Number | 91580 |
| Length | 7.25 Inch |

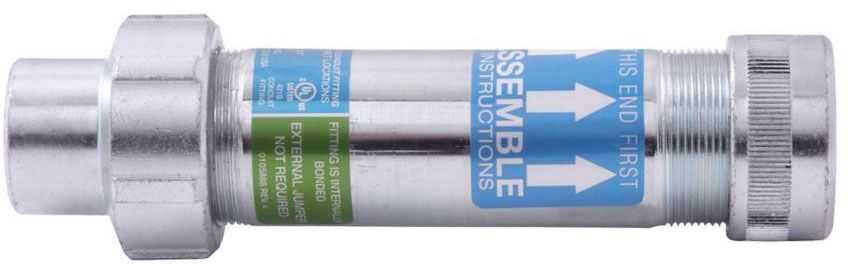

| Long Description | RIGID CONDUIT EXPANSION JOINT, THERMAL EXPANSION/CONTRACTION TYPE; NATURAL FINISHED COPPER FREE ALUMINUM BODY/GLAND NUT/REDUCER, ELECTROGALVANIZED STEEL WASHER/BUSHING, ELECTROGALVANIZED PHOSPHOR BRONZE GROUND SPRING, PTFE PACKING, VELLUM GASKET MATERIAL |
| MSDS Form Number | * |
| Material | Copper Free Aluminum;Natural Finished Copper Free Aluminum Body/Gland Nut/Reducer, Electrogalvanized Steel Washer/Bushing, Electrogalvanized Phosphor Bronze Ground Spring, PTFE Packing, Vellum Gasket |
| Maximum Movement | 4 Inch |
| Model | XJG |
| Noun | * |
| Product Description | 1-IN EXPANSION JOINT |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | CRS-H |
| Standard | UL 514B, CSA C22.2 |
| Trade Size | 1 Inch |
| Type | Expansion coupling;Thermal Expansion/Contraction |
| UNSPSC | 39121311 |
| UPC | 78227491580 |
| Used On | IMC/Rigid Metal Conduit |
| Vendor Name | EATON CROUSE-HINDS INDUSTRIAL |
| Vendor Number | 782274 |
| Vendor Short Name | CRS-H |
