| Manufacturer Name | EGS (EMERSON-APPLETON) |
| MfgPartNo | 184E |
| Additional Information | Applicable Standard NEMA FB-1, OS-1 |
| Approval | UL 514A/514B/514D |
| Base Price | 0.0000 |
| Capacity | 13.5 Cu Inch |
| Catalog Number | 184E |
| Commerce Sector | Construction Materials |
| Commodity Code | 27100 |
| Commodity Description | Steel Outlet Boxes |
| CountryOfOrigin | US |
| Cubic Capacity | 13.5 |
| DDCATEGORY | 139 |
| Depth | 1-1/2 Inch |
| Directory | CIS |
| Families | 139 |
| Family Description | Steel Outlet Boxes |
| Height | 4-1/8 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | HANDY BOX EXT4-1/8X2-3/8X1-1/2;4-1/8X1-9/16 BOX |
| Item Number | 76055 |
| Knockout Location | (6) Side, (2) End |
| Knockout Size | (6) 1/2 Inch Side, (2) 1/2 Inch End |
| Long Description | EXTENSION RING, 0.0625 INCH AISI/SAE 1008 PRE-GALVANIZED STEEL MATERIAL; 2-3/8 INCH; 4-1/8 INCH; 1-1/2 INCH; 1 GANG(S); UL 514A/514B/514D APPROVAL; 13.5 CU INCH CAPACITY; (6) 1/2 INCH SIDE, (2) 1/2 INCH END KNOCKOUT SIZE; 8 KNOCKOUT(S) |
| MSDS Form Number | * |
| Material | Steel;0.0625 Inch AISI/SAE 1008 Pre-Galvanized Steel |
| Noun | * |
| Number Of Gangs | 1 |
| Number Of Knockouts | 8 |
| Product Description | 4-1/8X1-9/16 BOX |
| Product Keywords | WEBREADY |
| Product Name | Electrical box extension |
| ProductLine | EGS |
| Special Features | 1 1/2 IN Depth, For 4 1/8 X 2 3/8 IN Boxes, With Slide On, (8) 1/2 IN Knockouts |
| Standard | UL |

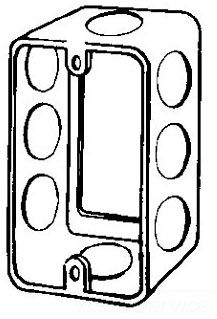

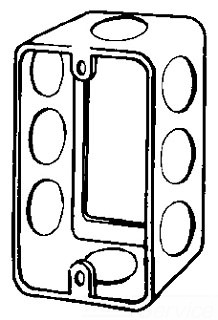

| Type | Handy Box Extension Ring |
| UNSPSC | 39121320 |
| UPC | 68785576055 |
| Vendor Name | EMERSON-APPLETON |
| Vendor Number | 687855 |
| Vendor Short Name | EGS |
| Width | 2-3/8 Inch |
