| Manufacturer Name | EGS (EMERSON-APPLETON) |
| MfgPartNo | 4250S |
| Additional Information | Applicable Standard NEMA FB-1 |
| Application | To ground and secure EMT Raceways to boxes and enclosures |
| Approval | UL 514B, CUL, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | ETP |
| Catalog Number | 4250S |
| Color | Metallic |
| Commerce Sector | Construction Materials |
| Commodity Code | 23151 |
| Commodity Description | Steel Uninsulated Straight Set Screw Emt Connectors |
| Connection | Male NPS Thread |
| Constructional Feature | Concretetight |
| CountryOfOrigin | IN |
| DDCATEGORY | 1634 |
| Diameter | 3.13 Inch |
| Directory | CIS |
| Families | 1634 |
| Family Description | Steel Uninsulated Straight Set Screw Emt Connectors |
| Finish | Zinc Electro Plated |
| Image Location | * Image |
| Industry | ELX |
| Insulation | Not Insulated |
| InvoiceDescription | 2-1/2 IN EMT SSCR CONN;2-1/2 S/SCR EMT CONN |
| Item Number | 84631 |
| Length | 2.38 Inch |

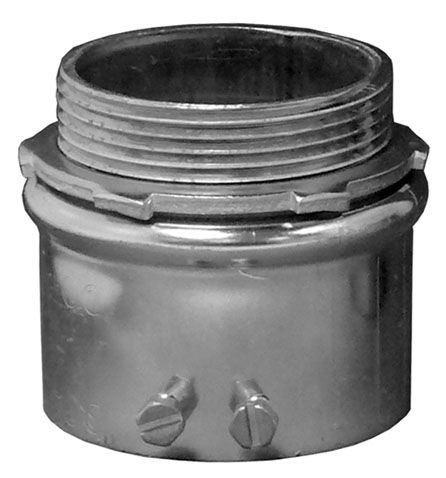

| Long Description | EMT CONDUIT STRAIGHT SET SCREW CONNECTOR, SET SCREW TYPE; ZINC PLATED STEEL MATERIAL; 2.38 INCH; EMT CONDUIT USED ON; 0.88 INCH THREAD LENGTH; UL 514B, CUL, CSA C22.2 APPROVAL; 3.13 INCH DIAMETER; 2-1/2 INCH TRADE SIZE; CONCRETETIGHT |
| MSDS Form Number | * |
| Material | Steel;Zinc Plated Steel |
| Model | Series 4000S |
| NEMA Rating | FB-1 |
| Noun | * |
| Product Description | 2-1/2 S/SCR EMT CONN |
| Product Keywords | WEBREADY |
| Product Name | Electrical metallic tubing EMT connectors |
| ProductLine | EGS |
| Size | 2.5 IN |
| Special Features | 2-1/2 IN Trade Size Connector for EMT Conduit, Set Screw Type, Male Hub Threads NPS, Body Length 2.38 IN, Max. Dia. 3.13 IN,Thread Length 0.88 IN, Concretetight when taped, Male Hub Threads - NPS |
| Standard | UL Standard: 514B; UL Listed: E14815, E14895; CSA Standard: C22.2 No. 18.3, cUL Listed: E14895, CSA Certified: 028507; NEMA: FB-1 |
| Thread Length | 0.88 Inch |
| Throat Type | Non-Insulated |
| Trade Size | 2-1/2 Inch |
| Type | EMT Conduit Straight Set Screw Connector;Set Screw |
| UNSPSC | 39121434 |
| UPC | 68785584631 |
| Used On | EMT Conduit |
| Vendor Name | EMERSON-APPLETON |
| Vendor Number | 687855 |
| Vendor Short Name | EGS |
