| Manufacturer Name | EGS (EMERSON-APPLETON) |
| MfgPartNo | AC-90 |
| Additional Information | COVER MATERIAL ZINC PLATED STEEL; INCLUDES LOCKNUT; USED ON ARMORED CABLE/FLEXIBLE METAL CONDUIT; APPLICABLE STANDARD NEMA FB-1 |
| Angle | 90 DEG |
| Application | To make a 90 degree termination of conduit or cable into knockout or unthreaded slip hole in a dry location |
| Approval | UL 514B, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | NEER[R] |
| Cable Conduit Type | Armored Cable/Flexible Metal Conduit/Metal Clad Cable |
| Cable Opening | Single |
| Catalog Number | AC-90 |
| Color | Metallic |
| Commerce Sector | Construction Materials |
| Commodity Code | 24200 |
| Commodity Description | Bx, Mc, Armored Cable Fittings |
| Connection | Male NPS Thread |
| Connector Type | Two Screw Clamp |
| Cord Size | 0.45 to 0.78 Inch |
| CountryOfOrigin | IN |
| DDCATEGORY | 1136 |
| Directory | CIS |
| Environmental Conditions | Dry Location |
| Families | 1136 |
| Family Description | Bx, Mc, Armored Cable Fittings |
| Finish | Zinc Plated Steel Cover, Body Natural |
| Image Location | * Image |
| Industry | ELX |
| Installation | (2) Screw, Clamp |
| Insulation | Non Insulated |
| InvoiceDescription | 3/8 IN 90D FLEX/AC/MC CBL CONN;3/8 D/C 90D FLEX CONN |
| Item Number | 10090 |
| Knockout Size | 1/2 Inch |

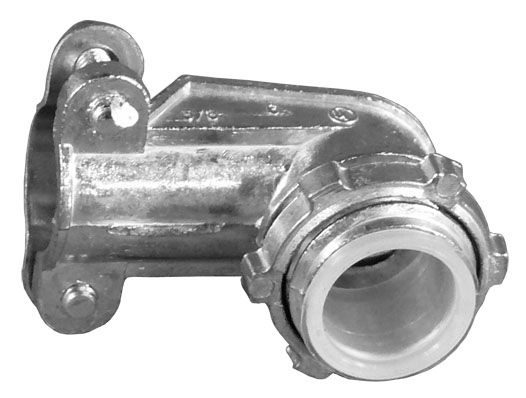

| Long Description | ARMORED CABLE/FLEXIBLE CONDUIT CONNECTOR, 90 DEGREE TYPE; DIE CAST ZINC MATERIAL; (2) SCREW, CLAMP INSTALLATION; UL 514B, CSA C22.2 APPROVAL; 3/8 INCH TRADE SIZE; 1/2 INCH KNOCKOUT SIZE; 0.45 TO 0.78 INCH CORD SIZE; NON-INSULATED THROAT TYPE |
| MSDS Form Number | * |
| Material | Zinc Die Cast Body, Cover Steel;Die Cast Zinc |
| NEMA Rating | FB-1 |
| Noun | * |
| Product Description | 3/8 D/C 90D FLEX CONN |
| Product Keywords | WEBREADY |
| Product Name | Flex connectors |
| ProductLine | EGS |
| Size | 0.375 IN |
| Special Features | 1.12 IN Length X 1.78 IN Height, 0.48 IN Thread Length, For Armored Cable, Flexible Metal Conduit and Metal Clad Cable |
| Standard | UL Standard: 514B; UL Listed: E25014; CSA Standard: C22.2 No. 18.3; CSA Certified: 208044; NEMA: FB-1 |
| Throat Type | Non-Insulated |
| Trade Size | 0-50 IN;3/8 Inch |
| Type | 90 Deg Two Screw Clamp Connector;90 Degree |
| UNSPSC | 39121419 |
| UPC | 68785510090 |
| Vendor Name | EMERSON-APPLETON |
| Vendor Number | 687855 |
| Vendor Short Name | EGS |
