| Manufacturer Name | EGS (EMERSON-APPLETON) |
| MfgPartNo | C-500 |
| Additional Information | Applicable Standard NEMA FB-1; Includes Locknut |
| Approval | UL 514B, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Appleton;NEER[R] |
| Cable Size | (2) 14 AWG to 12 AWG |
| Catalog Number | C-500 |
| Commerce Sector | Construction Materials |
| Commodity Code | 24200 |
| Commodity Description | Bx, Mc, Armored Cable Fittings |
| Connection | Male NPS Thread |
| CountryOfOrigin | IN |
| DDCATEGORY | 1137 |
| Diameter | 0.91 Inch |
| Directory | CIS |
| Families | 1137 |
| Family Description | Non-Metallic Cable Cable Fittings |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3/8 IN 2 SCR ROMEX CONN;3/8 D/C NM-B CONNECTOR |
| Item Number | 10500 |
| Length | 0.81 Inch |

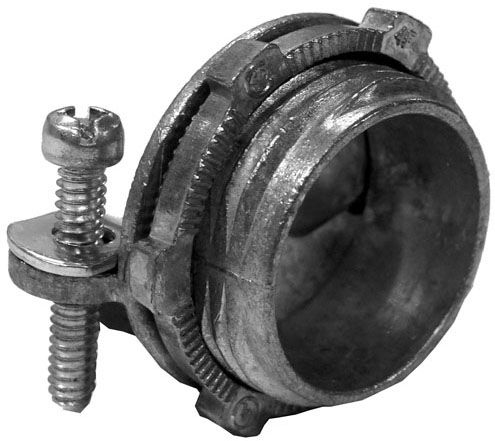

| Long Description | SHEATHED CABLE CONNECTOR, TWO SCREW TYPE; DIE CAST ZINC BODY, ZINC PLATED STEEL SCREW MATERIAL; 0.81 INCH; OVAL SERVICE ENTRANCE CABLE USED ON; 0.36 INCH THREAD LENGTH; (2) 14 AWG TO 12 AWG CABLE SIZE; UL 514B, CSA C22.2 APPROVAL; 0.91 INCH DIAMETER |
| MSDS Form Number | * |
| Material | Die Cast Zinc;Die Cast Zinc Body, Zinc Plated Steel Screw |
| Model | Series C |
| Noun | * |
| Product Description | 3/8 D/C NM-B CONNECTOR |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | EGS |
| Size | 0.38 IN |
| Special Features | 0.91 IN Dia X 0.81 IN Length, For 14-2 to 12-2 AWG Non-Metallic Sheathed Cable, With Locknut, Clamp |
| Standard | UL 514B, CSA C22.2, NEMA FB-1, Fed Spec W-F-406D |
| Sub Brand | NEER |
| Thread Length | 0.36 Inch |
| Trade Size | 3/8 Inch |
| Type | 2 Screw Open Throat Connector;Two Screw |
| UNSPSC | 39121311 |
| UPC | 68785510500 |
| Used On | Oval Service Entrance Cable |
| Vendor Name | EMERSON-APPLETON |
| Vendor Number | 687855 |
| Vendor Short Name | EGS |
