| Manufacturer Name | EGS (EMERSON-APPLETON) |
| MfgPartNo | LL75DCG |
| Access Opening | Left Side |
| Additional Information | APPLICABLE STANDARD NEMA FB-1; CAPACITY 7.3 CU INCH |
| Application | Provides access to the interior of the raceway for wire pulling , splicing and maintenance, Allows connection of straight and branch conduit runs and 90 degree bends |
| Approval | UL 514A, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | NEER[R] |
| Catalog Number | LL75DCG |
| Commerce Sector | Construction Materials |
| Commodity Code | 25210 |
| Commodity Description | Aluminum Conduit Bodies & Covers |
| Configuration | LL |
| CountryOfOrigin | IN |
| Cover Type | Natural Stamped Aluminum |
| DDCATEGORY | 552 |
| Directory | CIS |
| Families | 552 |
| Family Description | Aluminum Conduit Bodies & Covers |
| Finish | Epoxy Powder Coat;Other |
| Height | 2.14 |
| Hub Location | 90 Degree |
| Hub Size | 1;3/4 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | Threaded |
| InvoiceDescription | 3/4 THD ALUM LL BDY CVR GSKT;3/4 D/C COND BODY |
| Item Number | 00069 |
| Length | 5.94 in |
| Long Description | CONDUIT BODY, EPOXY POWDER COATED DIE CAST COPPER FREE ALUMINUM BODY, STEEL PAN HEAD COVER SCREW, NEOPRENE GASKET MATERIAL; 5.07 INCH LENGTH X 2.26 INCH WIDTH X 1.88 INCH HEIGHT SIZE; IMC/RIGID CONDUIT USED ON; 3/4 INCH HUB SIZE; THREADED INSTALLATION |
| MSDS Form Number | * |
| Material | Epoxy Powder Coated Die Cast Copper Free Aluminum Body, Steel Pan Head Cover Screw, Neoprene Gasket |
| Material Quality | Die Cast Aluminum |
| Model | LL |
| Noun | * |
| Number Of Hubs | 2 |
| Product Description | 3/4 D/C COND BODY |
| Product Keywords | WEBREADY |

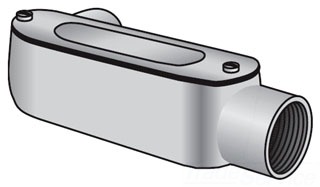

| Product Name | Electrical conduit fitting body |
| ProductLine | EGS |
| Size | 5.07 Inch Length x 2.26 Inch Width x 1.88 Inch Height |
| Special Features | 3/4 IN Trade Size, Type LL Aluminum Threaded Conduit Body, Volume 7.30 IN, Maximum No. of Conductors 3 #6AWG, For Use With Rigid and IMC Conduit, Furnished With Stamped Aluminum Cover and Neoprene Gasket |
| Standard | CSA Certified: 208044;CSA Standard: C22.2 No. 18.3;NEMA: FB-1;UL Listed: E53330;UL Standard: 514A |
| Type | Conduit Body |
| UNSPSC | 39131708 |
| UPC | 68785500069 |
| Used On | IMC/Rigid Conduit |
| Vendor Name | EMERSON-APPLETON |
| Vendor Number | 687855 |
| Vendor Short Name | EGS |
| Width | 2.68 in |
