| Manufacturer Name | EGS (EMERSON-APPLETON) |
| MfgPartNo | SC-38 |
| Additional Information | Includes Locknut; Used On Flexible Metal Conduit; Applicable Standard NEMA FB-1 |
| Angle | Straight |
| Application | Terminates flexible metal conduit to a knockout in a dry location box or enclosure |
| Approval | UL 514B, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | NEER |
| Cable Conduit Type | Flexible Metal Conduit |
| Cable Opening | Single |
| Catalog Number | SC-38 |
| Color | Metallic |
| Commerce Sector | Construction Materials |
| Commodity Code | 24200 |
| Commodity Description | Bx, Mc, Armored Cable Fittings |
| Conductor Range | Min.0.53-Max.0.65 IN |
| Connection | Male NPS Thread |
| Connector Type | Squeeze |
| Cord Size | 0.53 to 0.65 Inch |
| CountryOfOrigin | IN |
| DDCATEGORY | 1136 |
| Directory | CIS |
| Environmental Conditions | Dry Location |
| Families | 1136 |
| Family Description | Bx, Mc, Armored Cable Fittings |
| Finish | Natural |
| Image Location | * Image |
| Industry | ELX |
| Installation | Squeeze |
| Insulation | Non Insulated |
| InvoiceDescription | 3/8 IN SQUEEZE CONN FLEX/AC;3/8 D/C SQZ FLEX CONN |
| Item Number | 20038 |
| Knockout Size | 1/2 Inch |
| Length | 1.5 Inch |

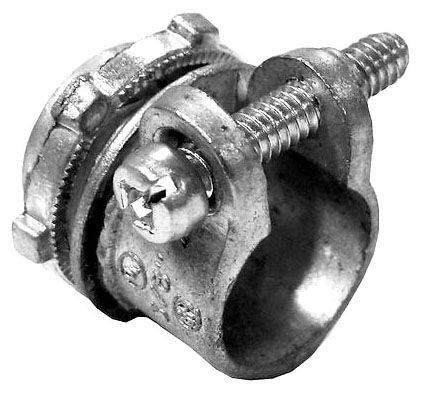

| Long Description | FLEXIBLE CONDUIT CONNECTOR, STRAIGHT TYPE; DIE CAST ZINC MATERIAL; 1.5 INCH; SQUEEZE INSTALLATION; UL 514B, CSA C22.2 APPROVAL; 3/8 INCH TRADE SIZE; 1/2 INCH KNOCKOUT SIZE; 0.53 TO 0.65 INCH CORD SIZE; NON-INSULATED THROAT TYPE; FLEXIBLE METAL CONDUIT |
| MSDS Form Number | * |
| Material | Zinc Die Cast;Die Cast Zinc |
| Model | Type SC |
| NEMA Rating | FB-1 |
| Noun | * |
| Product Description | 3/8 D/C SQZ FLEX CONN |
| Product Keywords | WEBREADY |
| Product Name | Flex connectors |
| ProductLine | EGS |
| Size | 0.375 IN |
| Special Features | 1.06 IN Dia X 1.5 IN Length, 0.48 IN Thread Length, Flexible Metal Conduit |
| Standard | UL Standard: 514B; UL Listed: E32539, CSA Standard: C22.2 No. 18.3, CSA Certified: 208044; NEMA: FB-1 |
| Throat Type | Non-Insulated |
| Trade Size | 0.5 IN;3/8 Inch |
| Type | Straight Squeeze Connector;Straight |
| UNSPSC | 39121419 |
| UPC | 68785520038 |
| Vendor Name | EMERSON-APPLETON |
| Vendor Number | 687855 |
| Vendor Short Name | EGS |
