| Manufacturer Name | EGS (EMERSON-APPLETON) |
| MfgPartNo | TC100DCG |
| Access Opening | Side |
| Additional Information | Applicable Standard NEMA FB-1; Capacity 12.2 Cu Inch |
| Application | Provides access to the interior of the raceway for wire pulling , splicing and maintenance, Allows connection of straight and branch conduit runs and 90 degree bends |
| Approval | UL 514A, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | NEER[TM] |
| Catalog Number | TC100DCG |
| Commerce Sector | Construction Materials |
| Commodity Code | 25210 |
| Commodity Description | Aluminum Conduit Bodies & Covers |
| Configuration | TC |
| Connector Type | Compression |
| CountryOfOrigin | IN |
| Cover Type | Natural Stamped Aluminum |
| DDCATEGORY | 552 |
| Directory | CIS |
| Families | 552 |
| Family Description | Aluminum Conduit Bodies & Covers |
| Finish | Powder Coated |
| Form | TC |
| Height | 2.14 in |
| Hub Location | Tee |
| Hub Size | 1;1 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | Threaded |
| InvoiceDescription | 1 IN THD ALUM TC BDY CVR GSKT;1IN D/C COND BODY |
| Item Number | 00057 |
| Length | 6.44 |
| Long Description | CONDUIT BODY, EPOXY POWDER COATED DIE-CAST COPPER FREE ALUMINUM (BODY), NEOPRENE (GASKET) MATERIAL; 6.44 INCH L X 2.68 INCH W X 2.14 INCH H SIZE; RIGID/IMC CONDUIT USED ON; 1 INCH HUB SIZE; THREADED INSTALLATION; TC CONFIGURATION; 3 HUB(S) |
| MSDS Form Number | * |
| Material | Epoxy Powder Coated Die-Cast Copper Free Aluminum (Body), Neoprene (Gasket) |
| Material Quality | Die-Cast Copper Free Aluminum |
| Noun | * |
| Number Of Hubs | 3 |
| Product Description | 1IN D/C COND BODY |
| Product Keywords | WEBREADY |

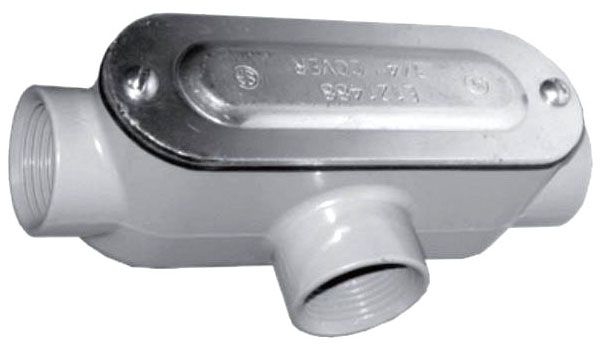

| Product Name | Electrical conduit fitting body |
| ProductLine | EGS |
| Size | 6.44 Inch L x 2.68 Inch W x 2.14 Inch H |
| Special Features | With Cover, Gasket |
| Standard | UL 514A, CSA C22.2, NEMA FB-1, NEMA FB-2.10, Fed Spec A-A-50563 |
| Trade Size | 3.5 IN |
| Type | Conduit Body Rigid Threaded |
| UNSPSC | 39131708 |
| UPC | 68785500057 |
| Used On | Rigid/IMC Conduit |
| Vendor Name | EMERSON-APPLETON |
| Vendor Number | 687855 |
| Vendor Short Name | EGS |
| Width | 2.68 in |
