| Manufacturer Name | NVENT (ERICO, CADDY, ERIFLEX) |
| MfgPartNo | BC260025EG |
| A | 20.64-20.64 |
| Additional Information | Rod Size 1/4 Inch; Jaw Depth 13/16 Inch; Flange Thickness 13/16 Inch; Hole Size 1/4 Threaded; Applicable Standard Federal Specification WW-H-171 Type 23, ANSI/MSS-SP-58 Type 19/23; Approval UL (Canada and US) |
| Application | Datacom and Low Voltage; Electrical Fixing and Fastening; HVAC, Plumbing and Refrigeration |
| Base Price | 0.0000 |
| Brand Name | nVent CADDY |
| Catalog Number | BC260025EG |
| Commerce Sector | Construction Materials |
| Commodity Code | 65400 |
| Commodity Description | Miscellaneous Fastening Hardware |
| CountryOfOrigin | CN |
| DDCATEGORY | 604 |
| Directory | CIS |
| Families | 604 |
| Family Description | Miscellaneous Fastening Hardware |
| Finish | Electrogalvanizing;Electrogalvanized |
| Flange Thickness Imperial Max | 13/16 in |
| Hole Size | 0.25-0.25 |
| Hole Size Imperial | 0.25-0.25 in |
| Hole Size Imperial Nom | 1/4 in |
| Hole Type | Threaded |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | "Universal BeamClamp, 1/4"" Rod, EG";1/4 MALL BEAM CLAMP |
| Item Number | 34025 |
| Load Capacity | 250 Pound |

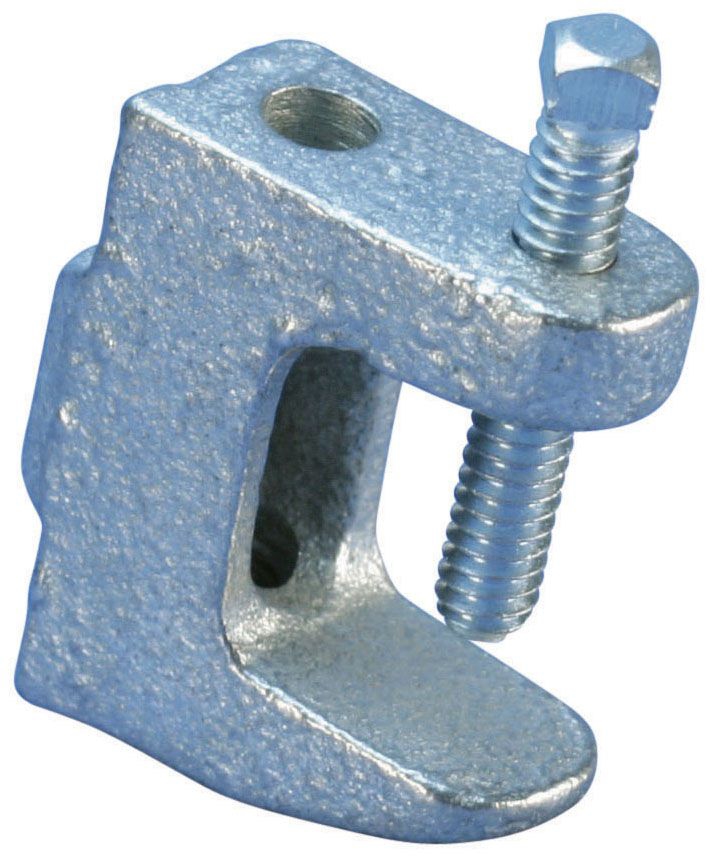

| Long Description | BEAM CLAMP, UNIVERSAL TYPE; CAST IRON MATERIAL; ELECTROGALVANIZED FINISH; 13/16 INCH MAX. JAW CAPACITY; 250 POUND LOAD CAPACITY; 1/4 INCH SCREW SIZE; YES SUPPLIED WITH SCREW; ROD SIZE 1/4 INCH; JAW DEPTH 13/16 INCH; FLANGE THICKNESS 13/16 INCH |
| MSDS Form Number | * |
| Material | Cast Iron |
| Maximum Jaw Capacity | 13/16 Inch |
| Noun | * |
| Product Description | 1/4 MALL BEAM CLAMP |
| Product Keywords | WEBREADY |
| Product Name | Beam clamps |
| ProductLine | ERC |
| Rod Size | 0.25 |
| Screw Diameter | 0.25-0.25 |
| Screw Size | 1/4 Inch |
| Special Features | CLAMP,BEAM,1/4 MAL |
| Standard | None |
| Static Load 1 | 250 |
| Static Load 2 | 445 |
| Static Load Safety Factor | 3.5:1 |
| Sub Brand | CADDY |
| Supplied With Screw | Yes |
| Torque | 40-40 |
| Type | Beam Clamps and Accessories;Universal |
| UNSPSC | 31162905 |
| UPC | 78285634025 |
| Vendor Name | NVENT (ERICO, CADDY, ERIFLEX) |
| Vendor Number | 782856 |
| Vendor Short Name | ERC |
