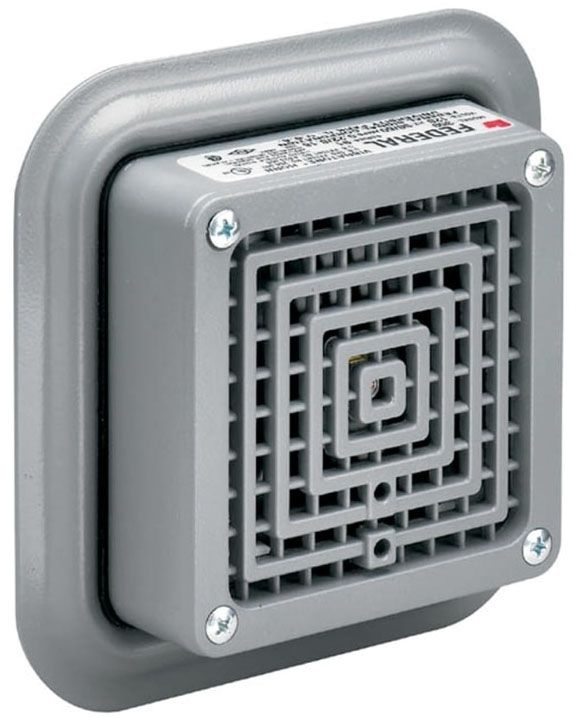

FED-SIG 350TR-120

120V AC HORN&RING

Page Loading...
FEDERAL SIGNAL CORP.
120V AC HORN&RING

Mouse over image to zoom, click to enlarge

Description:
120V AC HORN&RING

UPC:  78297921412

Part Number: 350TR-120

UNSPSC: 46171602

Status:  UNKNOWN

Your Price:  $125.12 / EA


Quantity  EA

Specifications

Manufacturer Name FEDERAL SIGNAL CORP.
MfgPartNo 350TR-120
Additional Information Diaphragm Material Stainless Steel; Temperature Rating -65 to 150 Deg F
Application Indoor/Outdoor;Industrial and Institutional Signaling, General Alarming, Start and Dismissal Noticing, Coded Paging and Process Control in Noisy Area
Approval UL, CUL, CSA, FM
Base Price 0.0000
Brand Name Federal Signal;Vibratone[R]
Catalog Number 350TR-120
Color Gray
Commerce Sector Construction Materials
Commodity Code 63100
Commodity Description Bells,Horns,Sirens,Buzzers,Strobes
CountryOfOrigin US
Current Rating 0.18 Amp
DDCATEGORY 591
Dimensions 5.61 H x 5.61 W x 2.30 D IN
Directory CIS
Enclosure Type 4X/Type 12;NEMA 4X/12
Families 591
Family Description Bells,Horns,Sirens,Buzzers,Strobes
Housing Material Powder Coated Die-Cast Zinc
Image Location * Image
Industry ELX
InvoiceDescription VIBRATONE HORN AND TRIM RING 120VAC;120V AC HORN&RING
Item Number 21412
Long Description HORN AND TRIM RING, ELECTRO MECHANICAL VIBRATING HORN TYPE; 5.6 INCH WIDTH X 2.5 INCH DEPTH X 5.6 INCH HEIGHT SIZE; GRAY COLOR; UL, CUL, CSA, FM APPROVAL
Loudness 100 DB
MSDS Form Number *
Material Zinc Die-Cast Housing
Model 350
Mounting Surface
Noun *
Operating Current 0.18 A
Operating Temperature -65 to 150 DEG F
Operating Voltage 120VAC 50-60Hz
Product Description 120V AC HORN&RING
Product Keywords WEBREADY
Product Name Safety horns
ProductLine FED-SIG
Size 5.6 Inch Width x 2.5 Inch Depth x 5.6 Inch Height
Sound Intensity 100 Decibel at 10 Foot, 110 Decibel at 1 Meter
Special Features Coded or Sustained Tones
Standard UL Listed/cUL Listed
Sub Brand Vibratone
Type Horn;Electro Mechanical Vibrating Horn
UNSPSC 46171602
UPC 78297921412
Vendor Name FEDERAL SIGNAL CORP.
Vendor Number 782979
Vendor Short Name FED-SIG
Voltage Rating 120 Volt AC at 50/60 Hertz

Resources

CatalogNumber 350TR-120
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
