| Manufacturer Name | FEDERAL SIGNAL CORP. |
| MfgPartNo | 350WBX-120 |
| Additional Information | Finish Corrosion Resistant Polyurethane; Temperature Rating -65 to 150 Deg F; Effective Range 200 Foot |
| Application | Indoor/Outdoor;Hazardous Location |
| Approval | UL, CUL, CSA |
| Base Price | 0.0000 |
| Brand Name | Federal Signal;Vibratone [R] |
| Catalog Number | 350WBX-120 |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 63100 |
| Commodity Description | Bells,Horns,Sirens,Buzzers,Strobes |
| CountryOfOrigin | US |
| Current Rating | 0.18 Amp |
| DDCATEGORY | 591 |
| Dimensions | 4.53 H x 4.53 W x 3.66 D IN |
| Directory | CIS |
| Enclosure | Type 4X, IP65, IP69K;Class I Div 2, Class II Div 2, Class III, NEMA 4X |
| Families | 591 |
| Family Description | Bells,Horns,Sirens,Buzzers,Strobes |
| Housing Material | Die-Cast Zinc |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | HORN HAZ LOC WEATHERPROOF BACK BOX 120V;120V XPRF HORN |
| Item Number | 20245 |

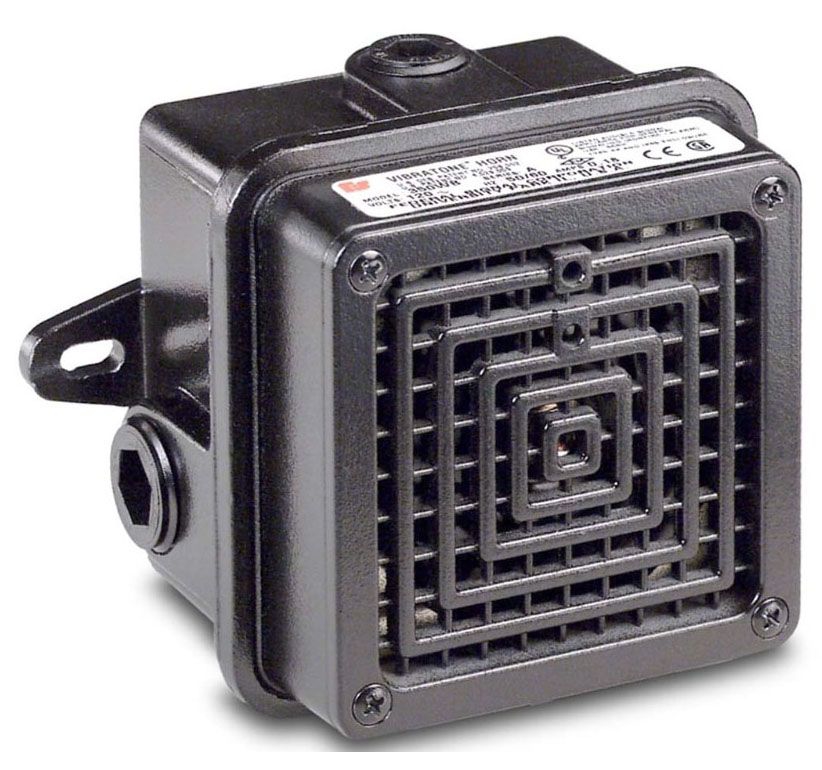

| Long Description | VIBRATING HORN, ELECTRO MECHANICAL VIBRATING HORN TYPE; 6.02 INCH WIDTH X 3.66 INCH DEPTH X 4.53 INCH HEIGHT SIZE; UL, CUL, CSA APPROVAL; HAZARDOUS LOCATION APPLICATION; 120 VOLT AC 50/60 HERTZ VOLTAGE RATING; SURFACE, PANEL MOUNTING |
| Loudness | 100 DB |
| MSDS Form Number | * |
| Material | Die-Cast Zinc Housing |
| Model | 350WBX |
| Mounting | Surface/Flush/Semi-Flush;Surface, Panel |
| Noun | * |
| Operating Current | 0.18 A |
| Operating Temperature | -65 to 104 DEG F |
| Operating Voltage | 120VAC 50-60Hz |
| Product Description | 120V XPRF HORN |
| Product Keywords | WEBREADY |
| Product Name | Safety horns |
| ProductLine | FED-SIG |
| Size | 6.02 Inch Width x 3.66 Inch Depth x 4.53 Inch Height |
| Sound Intensity | 100 Decibel at 10 Foot |
| Special Features | Coded Or Sustained Tones |
| Standard | UL Listed/cUL Listed/CSA Certified |
| Sub Brand | Vibratone |
| Type | Hazardous Location Horn With Back Box;Electro Mechanical Vibrating Horn |
| UNSPSC | 46171602 |
| UPC | 78297920245 |
| Vendor Name | FEDERAL SIGNAL CORP. |
| Vendor Number | 782979 |
| Vendor Short Name | FED-SIG |
| Voltage Rating | 120 Volt AC 50/60 Hertz |
Product Detail
