| Manufacturer Name | FEDERAL SIGNAL CORP. |
| MfgPartNo | 55-120-1 |
| Additional Information | Finish Gray Enamel; Duty Cycle 5 Minute On/Off; Temperature Rating -35 to 150 Deg F; Includes Mounting Bracket |
| Application | Indoor/Outdoor |
| Approval | UL, CSA, FM |
| Base Price | 0.0000 |
| Catalog Number | 55-120-1 |
| Color | Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 63100 |
| Commodity Description | Bells,Horns,Sirens,Buzzers,Strobes |
| Conduit Tapping Size | 1/2 Inch |
| CountryOfOrigin | USA |
| Current Rating | 0.75 Amp |
| DDCATEGORY | 591 |
| Dimensions | 8.0 H x 8.0 W x 19.75 L IN |
| Directory | CIS |
| Enclosure | Type 3R |
| Families | 591 |
| Family Description | Bells,Horns,Sirens,Buzzers,Strobes |
| Housing Material | Cast Aluminum |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | HORN RESONATING 105DBA 120VAC SWIVEL MNT;ACWP RESONATE HORN |
| Item Number | 22890 |

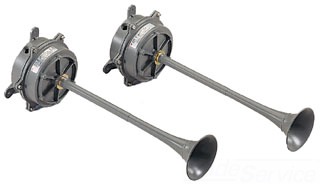

| Long Description | HORN, ELECTRIC, SINGLE PROJECTOR RESONATING VIBRATING HORN TYPE; 19.75 INCH LENGTH X 8 INCH WIDTH X 8 INCH HEIGHT SIZE; UL, CSA, FM APPROVAL; INDOOR/OUTDOOR APPLICATION; 120 VOLT AC AT 60 HERTZ VOLTAGE RATING; BRACKET MOUNTING; 0.75 AMP CURRENT RATING |
| Loudness | 105 DB |
| MSDS Form Number | * |
| Material | Cast Aluminum Housing/Spun Brass Projector |
| Model | 55 |
| Mounting | Surface;Bracket |
| Noun | * |
| Operating Current | 0.75 AMP |
| Operating Temperature | -35 to 150 DEG F |
| Operating Voltage | 120VAC 60Hz |
| Product Description | ACWP RESONATE HORN |
| Product Keywords | WEBREADY |
| Product Name | Safety horns |
| ProductLine | FED-SIG |
| Projector Material | Brass |
| Size | 19.75 Inch Length x 8 Inch Width x 8 Inch Height |
| Sound Intensity | 105 Decibel at 10 Foot, 115 Decibel at 1 Meter |
| Special Features | Resonated Column Of Air Generates Sound |
| Standard | CSA,UL |
| Type | Audible Signals;Electric, Single Projector Resonating Vibrating Horn |
| UNSPSC | 46171602 |
| UPC | 78297922890 |
| Vendor Name | FEDERAL SIGNAL CORP. |
| Vendor Number | 782979 |
| Vendor Short Name | FED-SIG |
| Voltage Rating | 120 Volt AC at 60 Hertz |
