| Manufacturer Name | FEDERAL SIGNAL CORP. |
| MfgPartNo | AV1-LED-120R |
| Additional Information | Lamp Enclosure Rating IP200000 Hour; Temperature Rating -31 to 150 Deg F |
| Amperage | 0.03 A |
| Amperage Rating | 0.03 AMP |
| Application | Indoor/Outdoor;Rain Tight |
| Approval | UL, CUL |
| Average Life | 50,000 HR |
| Base Price | 0.0000 |
| Catalog Number | AV1-LED-120R |
| Color | Red |
| Commerce Sector | Construction Materials |
| Commodity Code | 62100 |
| Commodity Description | Flashlights,Lanterns,Warning Lights |
| CountryOfOrigin | USA |
| DBa At 10ft | 85 dBa |
| DBa At 1M | 95 dBa |
| DDCATEGORY | 588 |
| Diameter | 5.76 in (146.3 mm) |
| Directory | CIS |
| Enclosure | NEMA 3R |
| Environmental Conditions | -31 to 150 DEG F |
| Families | 588 |
| Family Description | Flashlights,Lanterns,Warning Lights |
| Flash Rate | 60/75 FPM |
| Flashes Per Minute | 60/75 FLPM |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LIGHT SOUNDER COMBINATION LED 120VAC RED;LT/SOUND COMBI |
| Item Number | 22760 |
| Lamp Type | LED |
| Lens Color | Red |
| Light Source | LED |

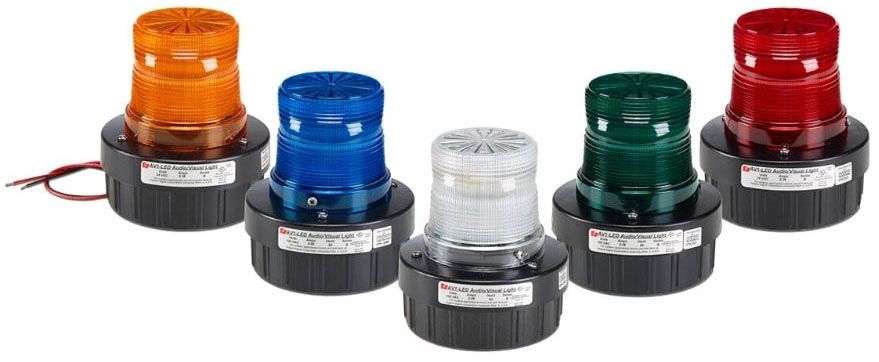

| Long Description | FLASHING COMBINATION AUDIBLE/VISUAL SIGNAL LIGHT, COMBINATION AUDIBLE/VISUAL SIGNAL LED FLASHING TYPE; POLYCARBONATE MATERIAL; 5.76 INCH DIAMETER X 6.48 INCH HEIGHT SIZE; UL, CUL APPROVAL; 120 VOLT AC OPERATING VOLTAGE; RAIN TIGHT APPLICATION |
| Loudness | 85 (At 10 Feet) DB |
| MSDS Form Number | * |
| Material | Polycarbonate Housing;Polycarbonate |
| Model | AV1-LED |
| Mounting | 1/2-Inch NPT Pipe/Surface/4-Inch Electrical Box;Pipe/Surface |
| NEMA Rating | Type 3R Enclosure |
| Noun | * |
| Operating Current | 0.03 Amp |
| Operating Temperature | -31D to +150DF (-35D to +66DC) |
| Operating Voltage | 120 Volt AC |
| Product Description | LT/SOUND COMBI |
| Product Keywords | WEBREADY |
| Product Name | Strobe or warning lights |
| ProductLine | FED-SIG |
| Shape | Cylindrical |
| Size | 6.48 H x 5.76 W x 5.76 D IN;5.76 Inch Diameter x 6.48 Inch Height |
| Sound Intensity | 85 Decibel at 10 Foot/1 Meter |
| Special Features | Combination Flashing LED And Buzzer |
| Standard | UL,cUL |
| Style | Flashing/Buzzer |
| Type | Audible/Visual Signal;Combination Audible/Visual Signal LED Flashing |
| UNSPSC | 39111706 |
| UPC | 78297922760 |
| Vendor Name | FEDERAL SIGNAL CORP. |
| Vendor Number | 782979 |
| Vendor Short Name | FED-SIG |
| Voltage Rating | 120 VAC |
