| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | E050JN |
| Additional Information | ROHS Compliant |
| Applicable Standard | NEMA ST-1, ANSI C89.1 |
| Application | Industrial |
| Approval | UL 506, UL (Canada and US), CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | SolaHD |
| Catalog Number | E050JN |
| Commerce Sector | Construction Materials |
| Commodity Code | 39220 |
| Commodity Description | Encapsulated Industrial Control Transformers |
| CountryOfOrigin | VN |
| DDCATEGORY | 2082 |
| Directory | CIS |
| Families | 2082 |
| Family Description | Encapsulated Industrial Control Transformers |
| Frequency Rating | 60 Hz |
| Height | 5.56 in |
| Image Location | * Image |
| Industry | ELX |
| Insulation Class | 105 |
| InvoiceDescription | .050KVA 208/240/480/600-120/24;50VA INDL CNTRL TFMR |
| Item Number | 53165 |
| KVA Rating | 0.05 |
| Length | 6.93 in |
| Long Description | INDUSTRIAL CONTROL TRANSFORMER, 3.39 INCH W X 4.36 INCH D X 2.96 INCH H SIZE; 60 HZ FREQUENCY RATING; UL 506, UL (CANADA AND US), CSA C22.2 APPROVAL; NEMA ST-1, ANSI C89.1 APPLICABLE STANDARD; 0.5 INCH L X 0.2 INCH W SLOT MOUNTING; 50 VA POWER RATING |
| MSDS Form Number | * |
| Model | SBE |
| Mounting | Heavy Gauge Steel Mounting Plate;0.5 Inch L x 0.2 Inch W Slot |
| Noun | * |
| Number Of Phases | 1 |
| Power Rating | 50 VA |
| Primary Voltage | 208/240/480/600 Volt Primary;200/230/460/575 V, 208/240/480/600 V |
| Product Description | 50VA INDL CNTRL TFMR |
| Product Keywords | WEBREADY |

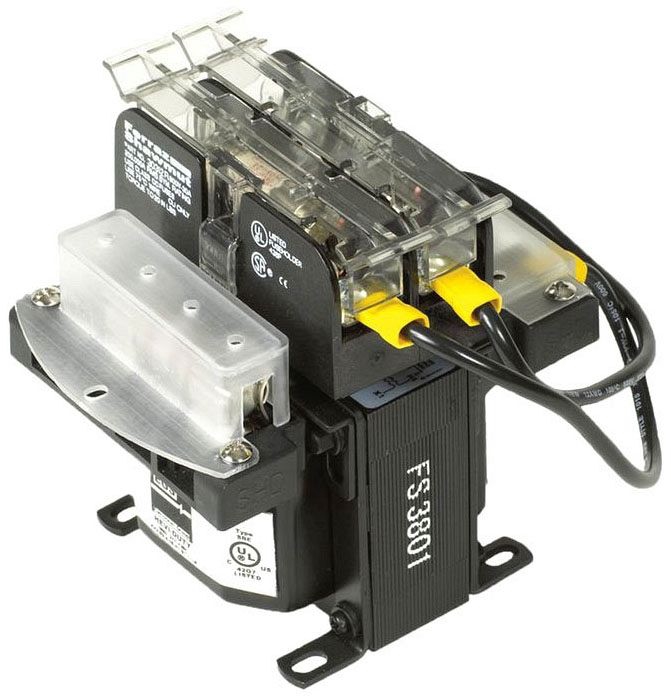

| Product Name | Control power transformer |
| ProductLine | H-D |
| Secondary Voltage | 120/24 Volt Secondary;23/115 V, 24/120 V |
| Size | 3.39 Inch W x 4.36 Inch D x 2.96 Inch H |
| Special Features | "50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEGC/131 DEGF rise, 105 DEGC insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Secondary fuse holders (FB2X) included for 13/32"" x 1-1/2"" cartridges (fuses not included)." |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Temperature Rise | 55 Deg C |
| Terminal Type | Screw |
| Type | SBE Encapsulated Series Transformers |
| UNSPSC | 39121026 |
| UPC | 78347253165 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Number | 783472 |
| Vendor Short Name | H-D |
| Wattage | 750 W |
| Width | 6.38 in |
