| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | E200WA |
| Applicable Standard | ANSI/NEMA ST-1 |
| Application | Industrial |
| Approval | UL (CANADA AND US) |
| Base Price | 0.0000 |
| Brand Name | SolaHD |
| Catalog Number | E200WA |
| Commerce Sector | Construction Materials |
| Commodity Code | 39220 |
| Commodity Description | Encapsulated Industrial Control Transformers |
| CountryOfOrigin | VN |
| DDCATEGORY | 2082 |
| Directory | CIS |
| Families | 2082 |
| Family Description | Encapsulated Industrial Control Transformers |
| Frequency Rating | 50/60 Hz;50/60 HZ |
| Height | 5.36 in |

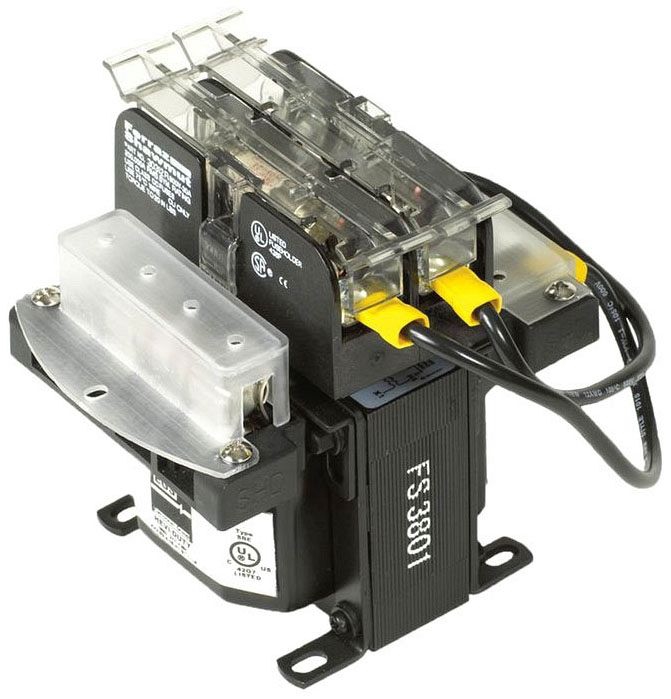

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | E200+FBPC1+FB2 FACTORY WIRED;200VA INDL CNTRL TFMR |
| Item Number | 00226 |
| KVA Rating | 0.2 |
| Length | 4.48 in |
| Long Description | INDUSTRIAL CONTROL TRANSFORMER, 4.5 INCH W X 4.79 INCH D X 5.36 INCH H SIZE; 50/60 HZ FREQUENCY RATING; UL (CANADA AND US) APPROVAL; ANSI/NEMA ST-1 APPLICABLE STANDARD; 0.65 INCH L X 0.2 INCH W/0.33 INCH L X 0.2 INCH W SLOT MOUNTING; 200 VA POWER RATING |
| MSDS Form Number | * |
| Mounting | Heavy Gauge Steel Mounting Plate;0.65 INCH L X 0.2 INCH W/0.33 INCH L X 0.2 INCH W SLOT |
| Noun | * |
| Number Of Phases | 1 |
| Power Rating | 200 VA |
| Power Rating In VA | 200 |
| Power Rating In VA UOM | VA |
| Primary Voltage | 240 x 480 Volt Primary;220 X 440/230 X 460 V AT 50/60 HZ, 240 X 480 V AT 60 HZ |
| Product Description | 200VA INDL CNTRL TFMR |
| Product Keywords | WEBREADY |
| Product Name | Control power transformer |
| ProductLine | H-D |
| Secondary Voltage | 120 Volt Secondary;110/115 V AT 50/60 HZ, 120 V AT 60 HZ |
| Size | 4.5 INCH W X 4.79 INCH D X 5.36 INCH H |
| Special Features | "50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Factory installed primary fuse holder class CC and secondary fuse holder (glass or ceramic (Type 3AG, 1/4""x1-1/4"" fuse type)" |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Temperature Rise | 55 DEG C |
| Terminal Type | SCREW |
| Type | SBE Encapsulated Series Transformers |
| UNSPSC | 39121026 |
| UPC | 78347200226 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Number | 783472 |
| Vendor Short Name | H-D |
| Wattage | 150 VA |
| Width | 4.5 in |
