| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | E250TF |
| Additional Information | ROHS Compliant |
| Applicable Standard | ANSI/NEMA/IEC |
| Application | Industrial |
| Approval | UL 506, UL (Canada and US), CE, CSA C22.2, JIC |
| Base Price | 0.0000 |
| Brand Name | SolaHD |
| Catalog Number | E250TF |
| Commerce Sector | Construction Materials |
| Commodity Code | 39220 |
| Commodity Description | Encapsulated Industrial Control Transformers |
| CountryOfOrigin | VN |
| DDCATEGORY | 2082 |
| Directory | CIS |
| Enclosure | IP20 |
| Families | 2082 |
| Family Description | Encapsulated Industrial Control Transformers |
| Frequency Rating | 50/60 Hz |
| Height | 3.89 in |

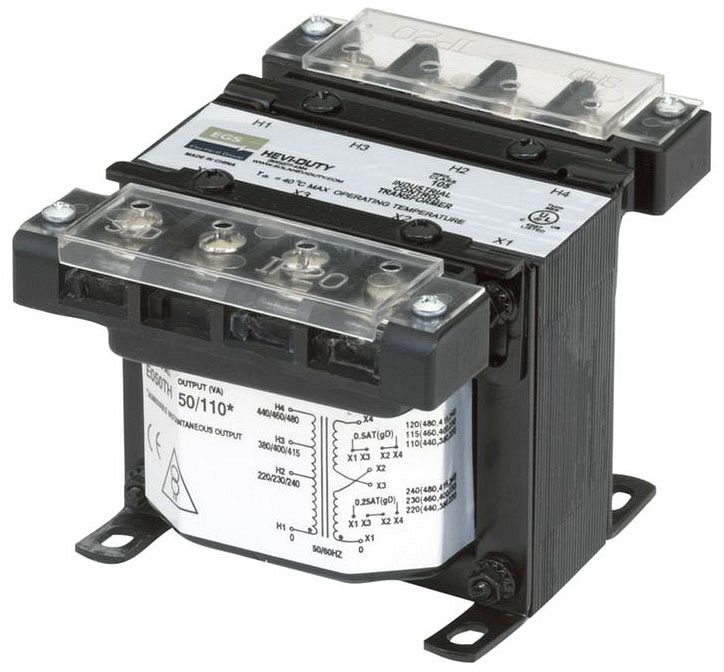

| Image Location | * Image |
| Industry | ELX |
| Insulation Class | 105 |
| InvoiceDescription | .25KVA 208/240/415/480/600-120;250VA INDL CNTRL TFMR |
| Item Number | 00213 |
| KVA Rating | 0.25 |
| Length | 5.21 in |
| Long Description | INDUSTRIAL CONTROL TRANSFORMER, 5.25 INCH W X 5.07 INCH D X 4.53 INCH H SIZE; 50/60 HZ FREQUENCY RATING; UL 506, UL (CANADA AND US), CE, CSA C22.2, JIC APPROVAL; ANSI/NEMA/IEC APPLICABLE STANDARD; 0.71 INCH L X 0.31 INCH W SLOT MOUNTING |
| MSDS Form Number | * |
| Model | International |
| Mounting | Heavy Gauge Steel Mounting Plate;0.71 Inch L x 0.31 Inch W Slot |
| Noun | * |
| Number Of Phases | 1 |
| Power Factor | 50 |
| Power Rating | 250 VA |
| Primary Voltage | 208/240/415/480/600 Volt Primary;200/230/400/460 V at 50/60 Hz/575 V at 60 Hz, 208/240/415/480 V at 50/60 Hz/600 V at 60 Hz, 220/380 V at 50/60 Hz/277 V at 60 Hz |
| Product Description | 250VA INDL CNTRL TFMR |
| Product Keywords | WEBREADY |
| Product Name | Control power transformer |
| ProductLine | H-D |
| Secondary Voltage | 120 Volt Secondary;110/115/120 V |
| Size | 5.25 Inch W x 5.07 Inch D x 4.53 Inch H |
| Special Features | "50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Secondary fuse holders (FB2X) included for 13/32"" x 1-1/2"" cartridges (fuses not included). Factory installed fuse holders are available (see WA and WB options)." |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Temperature Rise | 55 Deg C |
| Terminal Type | Screw |
| Type | International Series Control: 50-750 VA. |
| UNSPSC | 39121026 |
| UPC | 78347200213 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Number | 783472 |
| Vendor Short Name | H-D |
| Wattage | 150 VA |
| Width | 4.5 in |
