| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | E300 |
| Additional Information | RoHS Compliant |
| Applicable Standard | ANSI C89.1, NEMA ST-1, IEC 707/ISO 1210, E77014 |
| Application | Industrial |
| Approval | UL (Canada and US), CSA |
| Base Price | 0.0000 |
| Catalog Number | E300 |
| Commerce Sector | Construction Materials |
| Commodity Code | 39220 |
| Commodity Description | Encapsulated Industrial Control Transformers |
| CountryOfOrigin | VN |
| DDCATEGORY | 2082 |
| Directory | CIS |
| Families | 2082 |
| Family Description | Encapsulated Industrial Control Transformers |
| Frequency Rating | 50/60 HZ;50/60 Hertz |
| Height | 3.89 IN |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 0.300KVA 240X480-120;300VA INDL CNTRL TFMR |
| Item Number | 53127 |
| KVA Rating | 0.3 |
| Length | 5.21 IN |
| Long Description | INDUSTRIAL CONTROL TRANSFORMER, 5.25 INCH WIDTH X 4.66 INCH DEPTH X 4.53 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL (CANADA AND US), CSA APPROVAL; ANSI C89.1, NEMA ST-1, IEC 707/ISO 1210, E77014 APPLICABLE STANDARD |
| MSDS Form Number | * |
| Model | SBE |
| Mounting | Heavy Gauge Steel Mounting Plate;0.71 Inch Length x 0.31 Inch Width Slot |
| Noun | * |
| Number Of Phases | 1 |
| Power Rating | 300 Volt Amp |
| Primary Voltage | 240 x 480 Volt Primary;220 x 440/230 x 460 Volt AC, 240 x 480 Volt AC |
| Product Description | 300VA INDL CNTRL TFMR |
| Product Keywords | WEBREADY |

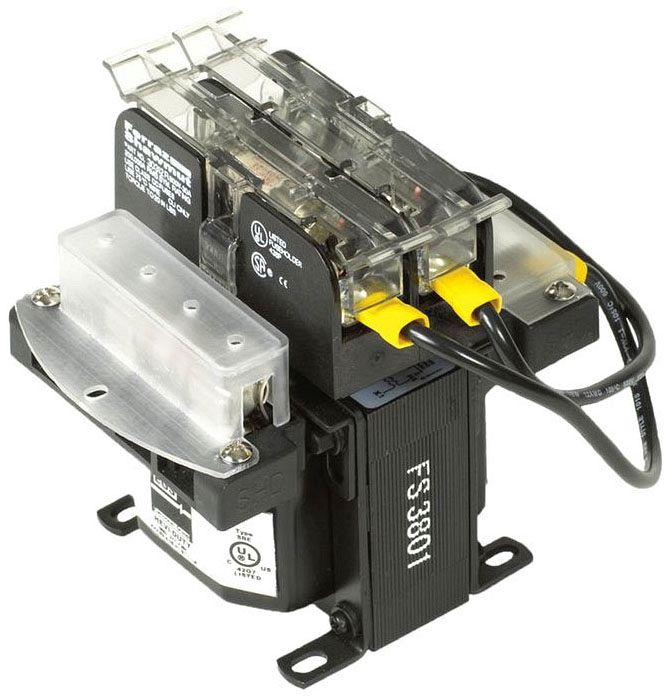

| Product Name | Control power transformer |
| ProductLine | H-D |
| Secondary Voltage | 120 Volt Secondary;110/115 Volt AC, 120 Volt AC |
| Size | 5.25 Inch Width x 4.66 Inch Depth x 4.53 Inch Height |
| Special Features | "50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Secondary fuse holders (FB2X) included for 13/32"" x 1-1/2"" cartridges (fuses not included)." |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Temperature Rise | 55 Deg C |
| Terminal Type | Frayed Lead Wire |
| Type | SBE Encapsulated Series Transformers |
| UNSPSC | 39121026 |
| UPC | 78347253127 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Number | 783472 |
| Vendor Short Name | H-D |
| Wattage | 250 VA |
| Width | 4.5 IN |
