| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | HZ1000 |
| Additional Information | ROHS Compliant; Enclosure Type NEMA 3R |
| Applicable Standard | NEMA |
| Application | Industrial Automation and Control Equipment Power PLCs, Machine Tools, Robotics, Semiconductor Fabrication Equipment |
| Approval | UL 506, UL (Canada and US), CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | SolaHD |
| Catalog Number | HZ1000 |
| Commerce Sector | Construction Materials |
| Commodity Code | 39220 |
| Commodity Description | Encapsulated Industrial Control Transformers |
| CountryOfOrigin | US |
| DDCATEGORY | 2082 |
| Directory | CIS |
| Enclosure | NEMA 3R |
| Families | 2082 |
| Family Description | Encapsulated Industrial Control Transformers |
| Frequency Rating | 50 Hz;50/60 Hz |
| Height | 18 in |

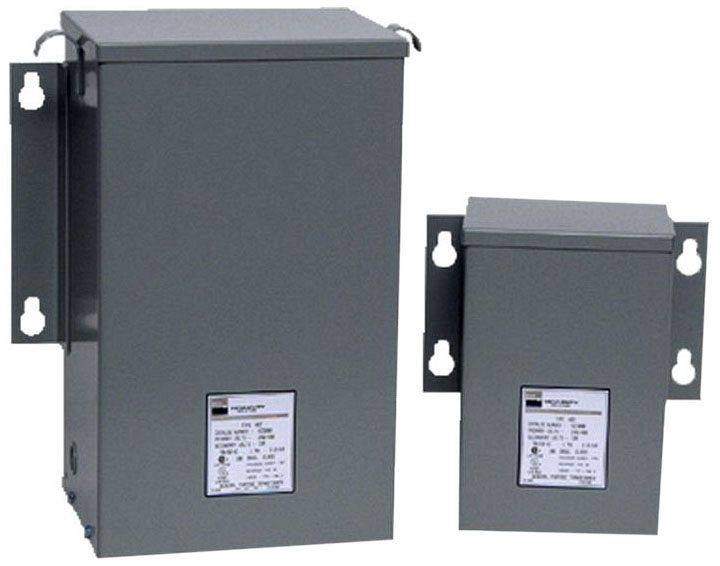

| Image Location | * Image |
| Industry | ELX |
| Input | 110, 120, 220, 240, 380, 415 VAC |
| Insulation Class | 180 |
| InvoiceDescription | 1KVA 240X480-120 ICT;1KVA TFMR |
| Item Number | 57060 |
| KVA Rating | 1 |
| Length | 10 in |
| Long Description | INDUSTRIAL CONTROL TRANSFORMER, 10 INCH W X 7 INCH D X 12 INCH H SIZE; 50/60 HZ FREQUENCY RATING; UL 506, UL (CANADA AND US), CSA C22.2 APPROVAL; NEMA APPLICABLE STANDARD; PANEL MOUNTING; 1 KVA POWER RATING |
| MSDS Form Number | * |
| Model | HSZ |
| Mounting | Bracket;Panel |
| Noise Level | 35 to 65 dBA |
| Noun | * |
| Number Of Phases | 1 |
| Output Power | 110, 120, 220, 240 VAC |
| Power Rating | 1 KVA |
| Primary Voltage | 240/480, 230/460, 220/440 Volt Primary;220/440 V, 230/460 V, 240/480 V |
| Product Description | 1KVA TFMR |
| Product Keywords | WEBREADY |
| Product Name | Control power transformer |
| ProductLine | H-D |
| Secondary Voltage | 120/115/110 Volt Secondary;120/115/110 V |
| Size | 10 Inch W x 7 Inch D x 12 Inch H |
| Special Features | +/- 3% output voltage regulation, Surge protection tested to ANSI/IEEE C62.41. Class A & B waveform, Harmonic filtering, Hardwired, Galvanic isolation, Noise attenuation 120 dB common mode/60 dB transverse mode |
| Standard | RoHS Compliant |
| Style | 1 |
| Temperature Rating | 80 DEG Temperature Rise under full load |
| Temperature Rise | 80 Deg C |
| Type | MCR Hardwired Series Power Line Conditioning with Voltage Regulation |
| UNSPSC | 39121026 |
| UPC | 78347257060 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Number | 783472 |
| Vendor Short Name | H-D |
| Wattage | 1,000 W |
| Width | 13 in |
