| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | HZ122000 |
| Additional Information | RoHS Compliant; Enclosure Rating NEMA 4/12 |
| Applicable Standard | NEMA |
| Application | The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. |
| Approval | UL (Canada and US), CSA |
| Base Price | 0.0000 |
| Brand Name | SolaHD |
| Catalog Number | HZ122000 |
| Commerce Sector | Construction Materials |
| Commodity Code | 39220 |
| Commodity Description | Encapsulated Industrial Control Transformers |
| CountryOfOrigin | US |
| DDCATEGORY | 2082 |
| Directory | CIS |
| Enclosure | NEMA 4/12 |
| Families | 2082 |
| Family Description | Encapsulated Industrial Control Transformers |
| Frequency Rating | 50/60 Hz;50/60 Hertz |
| Height | 12 in |

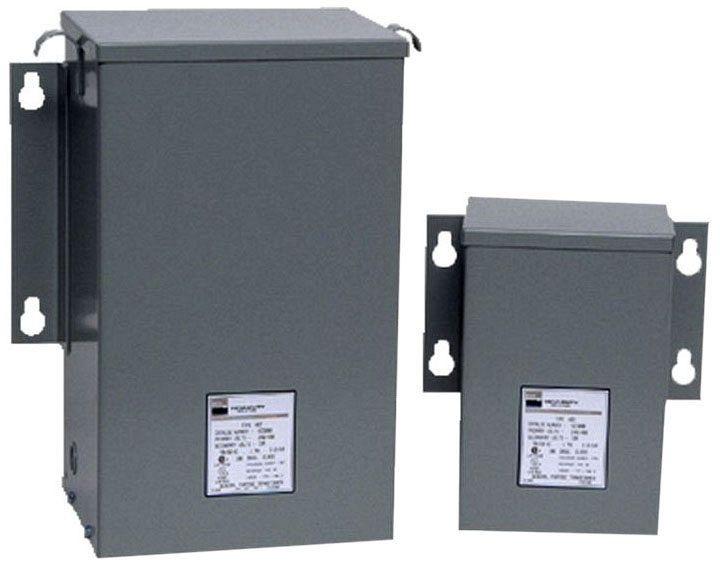

| Image Location | * Image |
| Industry | ELX |
| Insulation Class | 180 |
| InvoiceDescription | 2KVA 240X480-120 NEMA 4/12;2KVA TFMR |
| Item Number | 57100 |
| KVA Rating | 2 |
| Length | 7 in |
| Long Description | INDUSTRIAL CONTROL TRANSFORMER, 14 INCH WIDTH X 9 INCH DEPTH X 17 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL (CANADA AND US), CSA APPROVAL; NEMA APPLICABLE STANDARD; PANEL MOUNTING; 2 KILOVOLT AMP POWER RATING |
| MSDS Form Number | * |
| Model | HSZ |
| Mounting | Panel |
| Noun | * |
| Number Of Phases | 1 |
| Power Rating | 2 Kilovolt Amp |
| Primary Voltage | 240/480, 230/460, 220/440 Volt Primary;220/440 Volt AC, 230/460 Volt AC, 240/480 Volt AC |
| Product Description | 2KVA TFMR |
| Product Keywords | WEBREADY |
| Product Name | Control power transformer |
| ProductLine | H-D |
| Secondary Voltage | 120/115/110 Volt Secondary;120/115/110 Volt AC |
| Size | 14 Inch Width x 9 Inch Depth x 17 Inch Height |
| Special Features | UL Class 180 DEG C insulation system, 80 DEG C temperature rise under full load, Meets or exceeds NEMA regulation standards, Copper windings, Encapsulated, UL Listed/NEMA Type 3R (rain proof) |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Temperature Rating | 80 DEG Temperature Rise under full load |
| Temperature Rise | 80 Deg C |
| Type | HSZ Series Industrial Control Transformers |
| UNSPSC | 39121026 |
| UPC | 78347257100 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Number | 783472 |
| Vendor Short Name | H-D |
| Wattage | 1,500 W |
| Width | 10 in |
