| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | HZ1500 |
| Additional Information | ENCLOSURE TYPE NEMA 3R |
| Applicable Standard | NEMA |
| Application | The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. |
| Approval | CUL |
| Base Price | 0.0000 |
| Brand Name | SolaHD |
| Catalog Number | HZ1500 |
| Commerce Sector | Construction Materials |
| Commodity Code | 39220 |
| Commodity Description | Encapsulated Industrial Control Transformers |
| CountryOfOrigin | US |
| DDCATEGORY | 2082 |
| Directory | CIS |
| Enclosure | NEMA 3R |
| Families | 2082 |
| Family Description | Encapsulated Industrial Control Transformers |
| Frequency Rating | 50/60 Hz;50/60 HZ |
| Height | 12 in |

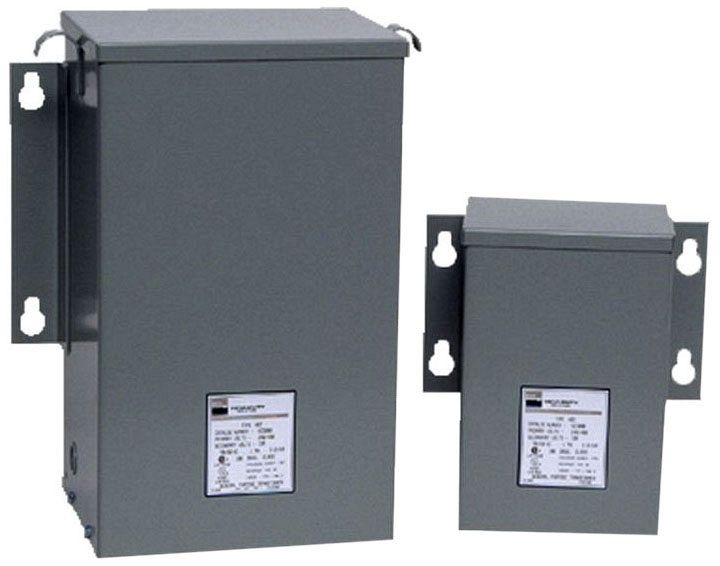

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1.5KVA 240X480-120;1.5KVA TFMR |
| Item Number | 57065 |
| KVA Rating | 1.5 |
| Length | 7 in |
| Long Description | INDUSTRIAL CONTROL TRANSFORMER, 9.88 INCH W X 6.5 INCH D X 10.5 INCH H SIZE; 50/60 HZ FREQUENCY RATING; CUL APPROVAL; NEMA APPLICABLE STANDARD; 1.5 KVA POWER RATING; 220/440 V, 230/460 V, 240/480 V PRIMARY VOLTAGE; 120 V SECONDARY VOLTAGE |
| MSDS Form Number | * |
| Model | HSZ |
| Noun | * |
| Number Of Phases | 1 |
| Power Rating | 1.5 KVA |
| Power Rating In VA | 1500 |
| Power Rating In VA UOM | VA |
| Primary Voltage | 240/480, 230/460, 220/440 Volt Primary;220/440 V, 230/460 V, 240/480 V |
| Product Description | 1.5KVA TFMR |
| Product Keywords | WEBREADY |
| Product Name | Control power transformer |
| ProductLine | H-D |
| Secondary Voltage | 120/115/110 Volt Secondary;120 V |
| Size | 9.88 INCH W X 6.5 INCH D X 10.5 INCH H |
| Special Features | UL Class 180 DEG C insulation system, 80 DEG C temperature rise under full load, Meets or exceeds NEMA regulation standards, Copper windings, Encapsulated, UL Listed/NEMA Type 3R (rain proof) |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Temperature Rating | 80 DEG Temperature Rise under full load |
| Temperature Rise | 80 DEG C |
| Type | HSZ Series Industrial Control Transformers |
| UNSPSC | 39121026 |
| UPC | 78347257065 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Number | 783472 |
| Vendor Short Name | H-D |
| Wattage | 1,000 W |
| Width | 10 in |
