| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | IE-110 |
| Additional Information | Mounting Type DIN Rail/Flange; LED Status Indication |
| Amperage Rating | 5 A |
| Application | Critical industrial loads drawing up to 20 Amps of continuous current, microprocessor-based products, including industrial PLCs, OEM applications, and motion control systems.;Industrial PLC/OEM, Motion Control System, Microprocessor Based Product |
| Approval | UL 1283/1449, CUL, CE |
| Base Price | 0.0000 |
| Brand Name | SolaHD;Islatrol[TM] |
| Catalog Number | IE-110 |
| Circuit Type | 1-Phase 2-Wire |
| Class | Category A Ringwave (6kv, 200 A, 100 kHz) |
| Commerce Sector | Construction Materials |
| Commodity Code | 49900 |
| Commodity Description | Programmable Logic & Automation Accessories |
| Connection | IEC 998 approved terminals |
| CountryOfOrigin | MX |
| Current Rating | 10 Ampere |
| DDCATEGORY | 2223 |
| Directory | CIS |
| Environmental Conditions | Humidity: 0 to 95% |
| Families | 2223 |
| Family Description | Programmable Logic & Automation Accessories |
| Frequency Rating | 47-63 Hz;47 to 63 Hz |

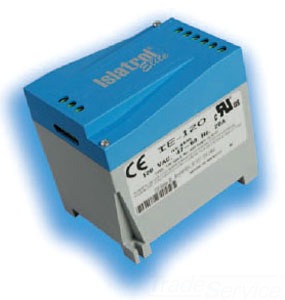

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | ACTIVE TRK FILTER 1PH 10A 120V DIN;10A 120 DIN/FLNG MT FILTR |
| Item Number | 07428 |
| Long Description | HIGH FREQUENCY NOISE FILTER, 47 TO 63 HZ FREQUENCY RATING; UL 1283/1449, CUL, CE APPROVAL; INDUSTRIAL PLC/OEM, MOTION CONTROL SYSTEM, MICROPROCESSOR BASED PRODUCT APPLICATION; 10 AMPERE CURRENT RATING; -40 TO 45 DEG C OPERATING TEMPERATURE |
| MCOV | 120 V |
| MSDS Form Number | * |
| Model | IE |
| Mounting | DIN/Flange |
| Noise Attenuation | 90 Db min at 100 kHz to 50 MHz (Normal Mode), 60 Db min at 5 MHz to 50 MHz (Common Mode) |
| Noun | * |
| Operating Temperature | -40 DEG C to +45 DEG C at Full Load; Derate Linearly to 60% at +70 DEG C;-40 to 45 Deg C |
| Phase | 1 |
| Product Description | 10A 120 DIN/FLNG MT FILTR |
| Product Keywords | WEBREADY |
| Product Name | Surge suppressers |
| ProductLine | H-D |
| Protection Mode | L-N, L-G, N-G |
| Response Time | Normal Mode <0.5ns; Common Mode <5ns |
| Short Circuit Rating | Surge current capacity - 45,000 Amps |
| Size | 4.06 Length x 3.06 Width x 3.83 High IN |
| Special Features | Surge current capacity 45,000 Amps; Transient protection in all modes: line to neutral, line to ground, and neutral to ground; LED status indication and form C contact for remote indication; DIN mountable enclosure |
| Standard | ANSI/UL 1449 Third Edition Type 4,1283, CUL recognized, CE, ROHS |
| Sub Brand | Edco |
| Type | Surge Protective Devices |
| Type Of Indicators | LED Power Indicators |
| UNSPSC | 39121610 |
| UPC | 63391407428 |
| Vendor Name | EMERSON NETWORK POWER SURGE PROTECTION CONTROL CONCEPTS |
| Vendor Number | 633914 |
| Vendor Short Name | CO |
| Voltage Rating | 120 V |
