| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | SCD30S24-DN |
| Additional Information | Hold up Time 10 Millisecond |
| Amperage Rating | 2 AMP |
| Application | Industrial - encoders, special sensors, communications and instrumentation; Telecommunications systems; Remote Site/Harsh Environment;Industrial, Telecommunications System, Remote Site/Harsh Environment |
| Approval | UL (Canada and US), CSA C22.2, CE |
| Base Price | 0.0000 |
| Catalog Number | SCD30S24-DN |
| Commerce Sector | Construction Materials |
| Commodity Code | 39620 |
| Commodity Description | Dc Power Supplies |
| Connection Type | Screw Clamp |
| Construction | Encapsulated |
| Cooling Type | Convection |
| CountryOfOrigin | DE |
| DDCATEGORY | 2090 |
| Directory | CIS |
| Enclosure | IP20 |
| Environmental Conditions | -25 to +65 DEG C Operating Temp |
| Families | 2090 |
| Family Description | Dc Power Supplies |
| Height | 1.29 IN |

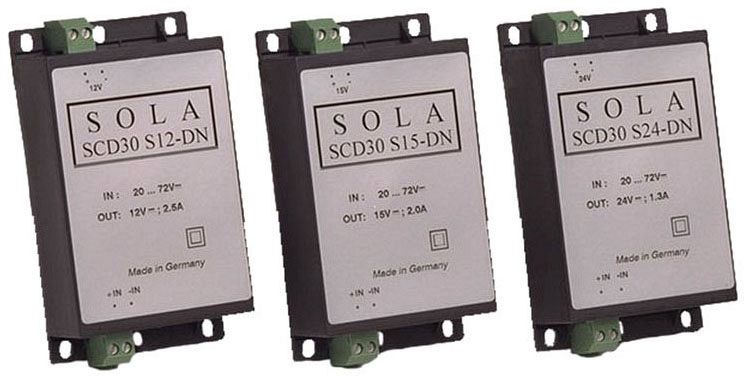

| Image Location | * Image |
| Industry | ELX |
| Input Voltage Range | 20 to 72 VDC |
| InvoiceDescription | 30W 24V DC-DC DIN SWITCHING PS;30W 24V SW PWR SPLY |
| Item Number | 15311 |
| Length | 4.71 IN |
| Long Description | DC POWER SUPPLY, SINGLE DC OUTPUT TYPE; 2.55 INCH W X 1.29 INCH D X 4.71 INCH H SIZE; SCREW CLAMP CONNECTION TYPE; UL (CANADA AND US), CSA C22.2, CE APPROVAL; INDUSTRIAL, TELECOMMUNICATIONS SYSTEM, REMOTE SITE/HARSH ENVIRONMENT APPLICATION |
| MSDS Form Number | * |
| Model | SCD |
| Mounting | DIN Rail or Chassis;DIN Rail/Chassis |
| Noun | * |
| Operating Temperature | -25 to 65 Deg C |
| Output Current | 1.3 Ampere |
| Output Power | 30 W |
| Output Voltage | (1) 24 VDC |
| Product Description | 30W 24V SW PWR SPLY |
| Product Keywords | WEBREADY |
| Product Name | Power supply units |
| ProductLine | H-D |
| Size | 2.55 Inch W x 1.29 Inch D x 4.71 Inch H |
| Special Features | DIN Rail or Chassis mount by removing DIN clips, Rugged, encapsulated design to resist environment, IP20 protection, Wide 20 to 72 Vdc input range, M3 screw clamp terminations, Simple snap-on for DIN. |
| Standard | cULus Listed, Ind. Control Equip., E61379, UL 508/CSA C22.2 No. 107.1.; Recognized Component, ITE, E137632, UL 60950/CSA C22.2 No. 234-M90; CE -IEC/EN60950-1; IP20 |
| Switching Frequency | 100 KHz |
| Type | SCD Series, Encapsulated, Industrial DC to DC Converter;Single DC Output |
| UNSPSC | 39121004 |
| UPC | 78347215311 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Number | 783472 |
| Vendor Short Name | H-D |
| Voltage Rating | 15 Vdc |
| Wattage | 30 WAT |
| Width | 2.55 IN |
