| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | SCP30D524B-DN |
| Additional Information | APPLICABLE STANDARD EN 60950 |
| Amperage Rating | 1 AMP |
| Application | Industrial Control, Process Control, Machine Control, Building Automation, Instrumentation;INDUSTRIAL CONTROL, INSTRUMENTATION DEVICE/EQUIPMENT |
| Approval | UL 1950, CUL, CE |
| Base Price | 0.0000 |
| Catalog Number | SCP30D524B-DN |
| Commerce Sector | Construction Materials |
| Commodity Code | 39620 |
| Commodity Description | Dc Power Supplies |
| Connection Type | SCREW CLAMP |
| Construction | ENCAPSULATED |
| Cooling Type | CONVECTION |
| CountryOfOrigin | DE |
| DDCATEGORY | 2090 |
| Directory | CIS |
| Efficiency | 68 PCT;68 PERCENT |
| Enclosure | IP20 |
| Environmental Conditions | -25 to +65 DEG C Operating Temp |
| Families | 2090 |
| Family Description | Dc Power Supplies |
| Frequency Rating | 50/60 HZ |
| Fuse Rating | 2.0 A Slow Fuse |
| Height | 1.37 IN |

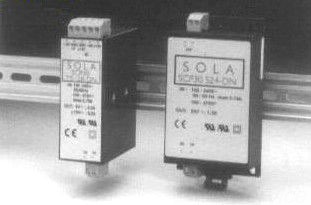

| Image Location | * Image |
| Industry | ELX |
| Input Frequency | 50 TO 400 HZ |
| Input Voltage Range | 85 TO 264 VAC/100 TO 375 VDC |
| InvoiceDescription | 30W 5/24V SW P S SLIM DIN;DUAL DC SWITCHER |
| Item Number | 15238 |
| Length | 4.43 IN |
| Long Description | DC POWER SUPPLY, DUAL DC OUTPUT TYPE; 1.29 INCH W X 2.68 INCH D X 4.72 INCH H SIZE; SCREW CLAMP CONNECTION TYPE; UL 1950, CUL, CE APPROVAL; INDUSTRIAL CONTROL, INSTRUMENTATION DEVICE/EQUIPMENT APPLICATION; 33 MM DIN RAIL MOUNTING; IP20 ENCLOSURE |
| MSDS Form Number | * |
| Material | Case Material/Potting: UL94-VO |
| Model | SCP |
| Mounting | DIN Rail/Chassis;33 MM DIN RAIL |
| Noun | * |
| Operating Temperature | -25 TO 65 DEG C |
| Output Current | 3 AMPERE AT 5 VDC, 0.6 AMPERE AT 24 VDC |
| Output Power | 30 W |
| Output Voltage | (1) 5 VDC, (1) 24 VDC |
| Product Description | DUAL DC SWITCHER |
| Product Keywords | WEBREADY |
| Product Name | Power supply units |
| ProductLine | H-D |
| Size | 1.29 INCH W X 2.68 INCH D X 4.72 INCH H |
| Special Features | International approvals for global use, DIN Rail or Chassis Mount, Rugged, encapsulated design to resist environment, IP20 protection. |
| Standard | UL Recognized Component, ITE, E137632, CE: IEC/EN 60950-1, 2nd Edition |
| Switching Frequency | 100 KHZ |
| Type | SCP Series, 30 Watt; Dual;DUAL DC OUTPUT |
| UNSPSC | 39121004 |
| UPC | 78347215238 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Number | 783472 |
| Vendor Short Name | H-D |
| Voltage Rating | Dual O/P +/- 15 V V |
| WEIGHT | 340/380 GRAM |
| Wattage | 30 -100 WAT |
| Width | 2.67 IN |
