| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | SCP30S5B-DN |
| Additional Information | Applicable Standard IEC/EN 60950-1 |
| Amperage Rating | 0.8 AMP |
| Application | Industrial, Hazardous Location;Industrial Control, Instrumentation Device/Equipment |
| Approval | UL (Canada and US), CE |
| Base Price | 0.0000 |
| Cable Size | 16 to 10 AWG Solid, 16 to 12 AWG Flexible |
| Catalog Number | SCP30S5B-DN |
| Commerce Sector | Construction Materials |
| Commodity Code | 39620 |
| Commodity Description | Dc Power Supplies |
| Connection Type | Screw Clamp |
| Construction | Encapsulated |
| Cooling Type | Convection |
| CountryOfOrigin | DE |
| DDCATEGORY | 2090 |
| Directory | CIS |
| Efficiency | 90 PCT;70 Percent |
| Enclosure | Class 1 Zone 2, IP20;IP20 |
| Environmental Conditions | 90 RH Humidity Range PCT |
| Families | 2090 |
| Family Description | Dc Power Supplies |
| Frequency Rating | 47 to 63 HZ |
| Fuse Rating | 2.0 A Slow Fuse |
| Height | 4.88 IN |

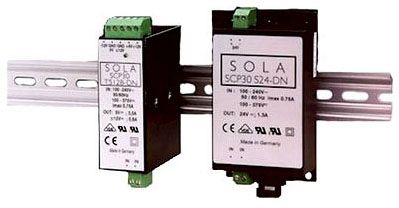

| Image Location | * Image |
| Industry | ELX |
| Input Frequency | 50/60 Hz |
| Input Voltage Range | 85 to 264 VAC, 100 to 375 VDC |
| InvoiceDescription | 30W 5V SW PWR SPLY SLIM DIN;UNIV DC SWITCHER |
| Item Number | 15224 |
| Length | 3.5 IN |
| Long Description | DC POWER SUPPLY, SINGLE DC OUTPUT TYPE; 1.29 INCH W X 2.68 INCH D X 4.72 INCH H SIZE; SCREW CLAMP CONNECTION TYPE; UL (CANADA AND US), CE APPROVAL; INDUSTRIAL CONTROL, INSTRUMENTATION DEVICE/EQUIPMENT APPLICATION; DIN RAIL MOUNTING; IP20 ENCLOSURE |
| MSDS Form Number | * |
| Material | Case Material/Potting: UL94-VO |
| Model | SCP |
| Mounting | DIN Rail/Chassis;DIN Rail |
| Noun | * |
| Operating Temperature | -25 to 65 Deg C |
| Output Current | 6 Ampere |
| Output Power | 30 W |
| Output Voltage | (1) 5 VDC |
| Phase | 3 |
| Product Description | UNIV DC SWITCHER |
| Product Keywords | WEBREADY |
| Product Name | Power supply units |
| ProductLine | H-D |
| Size | 1.29 Inch W x 2.68 Inch D x 4.72 Inch H |
| Special Features | LED Status Indication, Operating Temperature 10 to 60 DEG C, Output Voltage 24 VDC, Output Current Rating 10 AMP, Output Wattage 240W |
| Standard | UL (CANADA AND US), UL 508, UL 60950, CUL, CSA-C22.2, CE |
| Switching Frequency | 100 KHz |
| Type | Power Supply;Single DC Output |
| UNSPSC | 39121004 |
| UPC | 78347215224 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Number | 783472 |
| Vendor Short Name | H-D |
| Voltage Rating | 380 to 480 VAC |
| Wattage | 48 WAT |
| Width | 4.55 IN |
