| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | SDN20-24-100C |
| Additional Information | RoHS Compliant; Overvoltage Protection 33 Volt DC; Applicable Standard IEC/EN 60950-1 |
| Amperage Rating | 6 - 3 |
| Application | For use in industrial and medical applications requiring standard footprint size and very high reliability;Industrial Machine Control, Process Control, Conveyor, Material Handling, Hazardous Location, Marine |
| Approval | UL (Canada and US), CSA, CE |
| Base Price | 0.0000 |
| Brand Name | SolaHD |
| Cable Size | 16 - 10 AWG Solid |
| Catalog Number | SDN20-24-100C |
| Commerce Sector | Construction Materials |
| Commodity Code | 39610 |
| Commodity Description | Ac Power Supplies |
| Connection Type | Screw Terminal |
| Construction | Enclosed |
| Cooling Type | Convection |
| CountryOfOrigin | PH |
| DDCATEGORY | 2089 |
| Directory | CIS |
| Efficiency | 75% Typical at full load;92 Percent |
| Enclosure | IP20 |
| Environmental Conditions | 90 RH Humidity Range |
| Families | 2089 |
| Family Description | Ac Power Supplies |
| Frequency Rating | 47-63 Hz |
| Fuse Rating | Internally Fused |
| Height | 2.5 in |

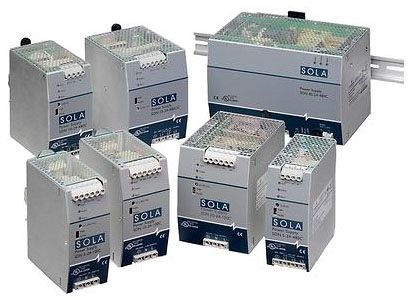

| Image Location | * Image |
| Industry | ELX |
| Input Current | 6/3 Amp |
| Input Frequency | 43 to 67 Hertz |
| Input Voltage Range | 85 to 264 Volt AC, 90 to 275 Volt DC |
| InvoiceDescription | 480W 24V DIN P/S 115/230V IN IECEX;480W POWER SUPPLY |
| Item Number | 00196 |
| Length | 9 in |
| Long Description | POWER SUPPLY, ADJUSTABLE SINGLE DC OUTPUT TYPE; METAL MATERIAL; 3.42 INCH WIDTH X 4.98 INCH DEPTH X 4.85 INCH HEIGHT SIZE; SCREW TERMINAL CONNECTION TYPE; 1 PHASE(S); UL (CANADA AND US), CSA, CE APPROVAL |
| MSDS Form Number | * |
| Material | Metal |
| Model | SDN-C |
| Mounting | DIN Rail |
| Nominal Input Voltage | 115/230 Volt AC |
| Noun | * |
| Number Of Phases | 1 |
| Operating Temperature | -40 to 60 Deg C |
| Output Current | 20 Amp |
| Output Power | 480 Watt |
| Output Voltage | 24 Volt DC |
| Phase | 1 |
| Product Description | 480W POWER SUPPLY |
| Product Keywords | WEBREADY |
| Product Name | Power supply units |
| ProductLine | H-D |
| Size | 3.42 Inch Width x 4.98 Inch Depth x 4.85 Inch Height |
| Special Features | Industry standard footprints, Universal input, Full power to 50 DEG C, High demonstrated MTBF, Automatic overvoltage protection, Overload protection, Built-in EMI Filtering, Derated operation to 70 DEG C, +/-2%, regulation on main output, 250 VA and higher VA size enclosed. |
| Standard | Non-Medical: EN60950, UL UL60950 E132002, CSA 22.2-234 Level 3 LR53982C, CB Certificate and report; CE Mark (LVD), Medical: UL 2601; CSA 22.2 No. 601.1; EN 60601-18 |
| Type | GL Series Single & Multi Output Switchers;Adjustable Single DC Output |
| UNSPSC | 39121004 |
| UPC | 78347200196 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Short Name | H-D |
| Voltage Rating | 264//300 VAC//VDC |
| Wattage | 38 W |
| Width | 5 in |
