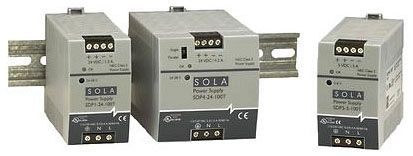

| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | SDP5-5-100T |
| Additional Information | RoHS Compliant; Applicable Standard IEC/EN 60950-1 |
| Amperage Rating | 700m/1.1 A |
| Application | Industrial Control, Process Control, Machine Control, Building Automation, Instrumentation;Building Automation, Industrial/Machine/Process Control |
| Approval | UL 508, UL (Canada and US), CE |
| Base Price | 0.0000 |
| Brand Name | SolaHD |
| Cable Size | 20 to 12 Solid or Stranded AWG |
| Catalog Number | SDP5-5-100T |
| Commerce Sector | Construction Materials |
| Commodity Code | 39620 |
| Commodity Description | Dc Power Supplies |
| Connection Type | Screw Terminal |
| Construction | Enclosed |
| CountryOfOrigin | TW |
| DDCATEGORY | 2090 |
| Directory | CIS |
| Efficiency | 86 PCT;80 Percent |
| Enclosure | Class 1, IP20;IP20 |
| Environmental Conditions | 90 RH Humidity Range |
| Families | 2090 |
| Family Description | Dc Power Supplies |
| Frequency Rating | 47-63 Hz |
| Height | 2.95 in |
| Image Location | * Image |
| Industry | ELX |
| Input Current | 0.6 Amp at 102 Volt AC, 0.33 Amp at 196 Volt AC |
| Input Frequency | 47 to 63 Hertz |
| Input Voltage Range | 85 to 264 Volt AC, 90 to 375 Volt DC |
| InvoiceDescription | 25W 5V DIN PLASTIC 115/230V IN;25W 5V PWR SPLY |
| Item Number | 15164 |
| Length | 1.77 in |
| Long Description | DC POWER SUPPLY, ADJUSTABLE SINGLE DC OUTPUT TYPE; PLASTIC MATERIAL; 1.77 INCH WIDTH X 3.58 INCH DEPTH X 2.95 INCH HEIGHT SIZE; SCREW TERMINAL CONNECTION TYPE; UL 508, UL (CANADA AND US), CE APPROVAL |
| MSDS Form Number | * |
| Material | Plastic |
| Model | SDP |
| Mounting | DIN Rail |
| Noun | * |
| Operating Temperature | -10 to 60 Deg C |
| Output Current | 5 Amp at 5.1 Volt DC |
| Output Power | 25 Watt |
| Output Voltage | 5 to 6 Volt DC |
| Product Description | 25W 5V PWR SPLY |
| Product Keywords | WEBREADY |
| Product Name | Power supply units |
| ProductLine | H-D |
| Size | 1.77 Inch Width x 3.58 Inch Depth x 2.95 Inch Height |
| Special Features | LED Status Indication, -10 to 70 DEG C Operating Temperature, Output Voltage 24 to 28 VDC, Output Current Rating 3 to 2.1A |
| Standard | UL (CANADA AND US), UL 94, UL 508, UL 60950, CUL, CSA-C22.2, CE |
| Type | SDP Low Power DIN Rail Series;Adjustable Single DC Output |
| UNSPSC | 39121004 |
| UPC | 78347215164 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Number | 783472 |
| Vendor Short Name | H-D |
| Voltage Rating | 264//375 VAC//VDC |
| Width | 3.58 in |
