| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | SLD-12-3434-12T |
| Additional Information | Response Time 50 Millisecond at 50 Percent Load Changes; Ripple 3 Millivolt (Maximum Peak-to-Peak) |
| Amperage Rating | Output 1: 15 V @ 3 A . Output 2: -15 V @ 3 A |
| Application | Industrial Control Circuits and Components, Instrumentation, Drives, CNC Machinery, Equipment for food industry, Microprocessor Circuits, Analog Circuits, Noise sensitive Circuitry and Sensors;Analog Circuit, CNC Machinery, Drives, Equipment for Food Industry, Instrumentation, Industrial Control Circuit and Component, Microprocessor Circuit, Noise Sensitive Circuitry and Sensor |
| Approval | UL (Canada and US), CSA C22.2, CE |
| Base Price | 0.0000 |
| Catalog Number | SLD-12-3434-12T |
| Commerce Sector | Construction Materials |
| Commodity Code | 39620 |
| Commodity Description | Dc Power Supplies |
| Connection Type | Screw Terminal |
| Construction | Open |
| Cooling Type | Forced Air |
| CountryOfOrigin | VN |
| DDCATEGORY | 2090 |
| Directory | CIS |
| Families | 2090 |
| Family Description | Dc Power Supplies |
| Image Location | * Image |
| Industry | ELX |
| Input Frequency | 47 to 63 Hz |
| Input Voltage Range | 100/120/220/230/240 VAC (User Selectable) |
| InvoiceDescription | DUAL +-12V 3.4A LINEAR PS;OPEN FRAME LIN |
| Item Number | 60107 |
| Line Regulation | 0.05 Percent for 10 Percent Change |
| Load Regulation | 0.05 Percent for 50 Percent Change |

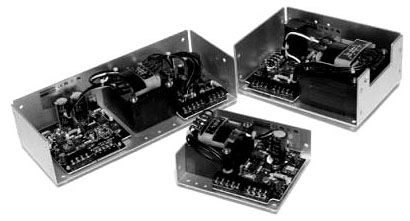

| Long Description | DC LINEAR POWER SUPPLY, DUAL DC OUTPUT TYPE; 9 INCH L X 4.87 INCH W X 2.76 INCH H SIZE; SCREW TERMINAL CONNECTION TYPE; UL (CANADA AND US), CSA C22.2, CE APPROVAL |
| MSDS Form Number | * |
| Model | SLD |
| Mounting | DIN Rail |
| Noun | * |
| Operating Temperature | 0 to 50 Deg C |
| Output Current | 3.4 Ampere at +/- 12 VDC |
| Output Power | 15 to 244 W |
| Output Voltage | (1) 12 VDC, (1) -12 VDC |
| Product Description | OPEN FRAME LIN |
| Product Keywords | WEBREADY |
| Product Name | Power supply units |
| ProductLine | H-D |
| Size | 9 Inch L x 4.87 Inch W x 2.76 Inch H |
| Special Features | Easy-to-install screw terminal connections, Cover options, Industry standard footprint, Universal input and approvals (115/230 Vac), Low noise, extremely quiet DC output. For noise sensitive or analog circuitry. Fast transient response. Ideal for test applications. Built-in OVP on 5 V models and optional on 12, 15 and 24 V models. Automatic resetting overload protection. Short circuit protected. |
| Standard | UL Recognized Component, ITE, UL 60950-1, CSA Certified, ITE CSA C22.2 CSA 60950-1, CE, IEC60950-1 |
| Type | Silver Line Series - Single & Multi-Output Linears;Dual DC Output |
| UNSPSC | 39121004 |
| UPC | 78347260107 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Number | 783472 |
| Vendor Short Name | H-D |
| Voltage Rating | 100, 120, 220, 230, 240 Selectable VAC |
