| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | SLS-05-090-1T |
| Additional Information | RoHS Compliant |
| Application | Industrial Control Circuits and Components, Instrumentation, Drives, CNC Machinery, Equipment for food industry, Microprocessor Circuits, Analog Circuits, Noise sensitive Circuitry and Sensors;Industrial Control Circuits and Component, Instrumentation, Drives, CNC Machinery, Equipment for Food Industry, Microprocessor Circuit, Analog Circuit, Noise Sensitive Circuitry and Sensor |
| Approval | UL 508, UL (Canada and US), CSA, CE, CB |
| Base Price | 0.0000 |
| Catalog Number | SLS-05-090-1T |
| Commerce Sector | Construction Materials |
| Commodity Code | 39620 |
| Commodity Description | Dc Power Supplies |
| Connection Type | Screw Terminal |
| Construction | Open Frame |
| Cooling Type | Forced Air |
| CountryOfOrigin | VN |
| DDCATEGORY | 2090 |
| Directory | CIS |
| Enclosure | Case I2 |
| Families | 2090 |
| Family Description | Dc Power Supplies |
| Frequency Rating | 47 to 63 HZ |
| Height | 4.87 IN |
| Image Location | * Image |
| Industry | ELX |
| Input Frequency | 47 to 63 Hertz |
| Input Voltage Range | 100/120/220/230/240 Volt AC |
| InvoiceDescription | SINGLE 5V 9A OVP LINEAR PS;OPEN FRAME LINEAR |
| Item Number | 60082 |
| Length | 9 IN |
| Line Regulation | 10 Percent |
| Load Regulation | 50 Percent |
| Long Description | DC LINEAR POWER SUPPLY, SINGLE DC OUTPUT TYPE; 7 INCH WIDTH X 2.75 INCH DEPTH X 4.87 INCH HEIGHT SIZE; SCREW TERMINAL CONNECTION TYPE; 1 PHASE(S); UL 508, UL (CANADA AND US), CSA, CE, CB APPROVAL |
| MSDS Form Number | * |
| Model | SL |
| Mounting | Chassis |
| Nominal Input Voltage | 115/230 Volt AC |
| Noun | * |
| Number Of Phases | 1 |
| Operating Temperature | 0 to 50 Deg C |
| Output Current | 9 Amp at 5 Volt AC |
| Output Power | 15 to 244 Watt |
| Output Voltage | 5 Volt DC |

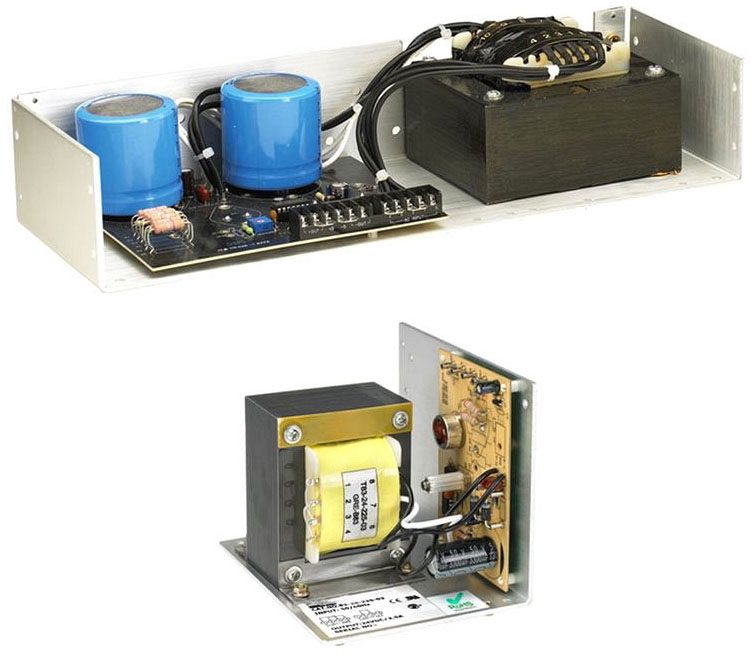

| Product Description | OPEN FRAME LINEAR |
| Product Keywords | WEBREADY |
| Product Name | Power supply units |
| ProductLine | H-D |
| Size | 7 Inch Width x 2.75 Inch Depth x 4.87 Inch Height |
| Special Features | Easy-to-install screw terminal connections, Cover options, Industry standard footprint, Universal input and approvals (115/230 Vac), Low noise, extremely quiet DC output. For noise sensitive or analog circuitry. Fast transient response. Ideal for test applications. Built-in OVP on 5 V models and optional on 12, 15 and 24 V models. Automatic resetting overload protection. Short circuit protected. |
| Standard | UL Recognized Component, ITE, UL 60950-1, CSA Certified, ITE CSA C22.2 CSA 60950-1, CE, IEC60950-1 |
| Type | Silver Line Series - Single & Multi-Output Linears;Single DC Output |
| UNSPSC | 39121004 |
| UPC | 78347260082 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Number | 783472 |
| Vendor Short Name | H-D |
| Voltage Rating | 100, 120, 220, 230, 240 Selectable VAC |
| WEIGHT | 4 Pound |
| Width | 2.76 IN |
