| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | SVL124100 |
| Additional Information | RoHS Compliant; Storage Temperature -40 to 85 Deg C; Overload Capability Hiccup |
| Amperage Rating | 1.25 A |
| Application | Heavy and Light Industrial Machinery; Test and Measure Equipment; Scanners; instrumentation; ATM Machines; Vending Machines;;Test and Measure Equipment, Scanner, Instrumentation, Printer Peripheral, ATM Machine, Semiconductor Fabrication Equipment, Vending Machine |
| Approval | UL 508/60950, UL (Canada and US), CSA C22.2, CE |
| Base Price | 0.0000 |
| Brand Name | SolaHD |
| Cable Size | Input Connector size range: 22-12 AWG (0.4-3.4 mm2) for solid conductors; Output Connector size range: 20-12 AWG (0.5-3.4 mm2) for solid conductors |
| Catalog Number | SVL124100 |
| Commerce Sector | Construction Materials |
| Commodity Code | 39610 |
| Commodity Description | Ac Power Supplies |
| Cooling Type | Convection |
| CountryOfOrigin | TH |
| DDCATEGORY | 2089 |
| Directory | CIS |
| Efficiency | 88 % typ;88 Percent |
| Enclosure | To be installed in an enclosure |
| Environmental Conditions | To be installed in a controlled environment |
| Families | 2089 |
| Family Description | Ac Power Supplies |
| Frequency Rating | 50/60 Hz |
| Fuse Rating | Internally Fused |
| Height | 2.95 in |
| Image Location | * Image |
| Industry | ELX |
| Input Current | 35 Amp at 115 Volt AC, 60 Amp at 230 Volt AC |
| Input Frequency | 50/60 Hertz |
| Input Voltage Range | 85 to 264 Volt AC, 100 to 240 Volt AC, 120 to 375 Volt DC |
| InvoiceDescription | 30W 24V DIN PS 85-264VAC;30W 24V PWR-SPLY |
| Item Number | 87318 |
| Length | 3.52 in |
| Long Description | POWER SUPPLY, 0.82 INCH WIDTH X 3.52 INCH DEPTH X 2.95 INCH HEIGHT SIZE; 1 PHASE(S); UL 508/60950, UL (CANADA AND US), CSA C22.2, CE APPROVAL |
| MSDS Form Number | * |
| Material | Plastic |
| Mounting | DIN Rail |
| Noun | * |
| Number Of Phases | 1 |
| Operating Temperature | -20 to 70 Deg C |
| Output Current | 1.25 Amp |
| Output Power | 30 Watt |
| Output Voltage | 24 Volt |
| Phase | 1 |
| Product Description | 30W 24V PWR-SPLY |
| Product Keywords | WEBREADY |
| Product Name | Power supply units |
| ProductLine | H-D |

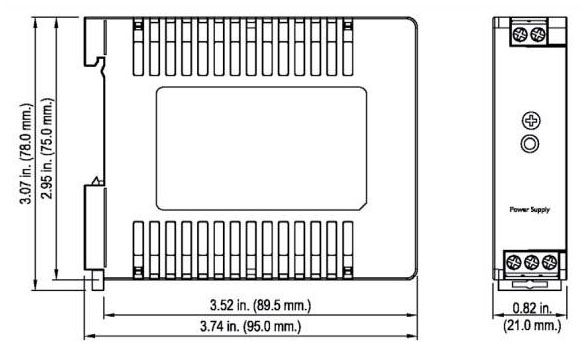

| Size | 0.82 Inch Width x 3.52 Inch Depth x 2.95 Inch Height |
| Special Features | Universal Input; Convection cooling; DC OK LED; NEC Class 2 output; Protection: short circuit, over voltage, overload, over temperature; Two year warranty |
| Standard | UL Listed, Industrial Control Equipment for US and Canada: UL 508, CSA C22.2 No. 107.1; UL Recognized Component, ITE for US and Canada: UL 60950-1/CSA C22.2 60950-1 2nd edition; CE: IEC/EN 60950-1 2nd edition CB Scheme, NEC Class 2 |
| Sub Brand | Sola |
| Type | SVL Essential Din Rail Series |
| UNSPSC | 39121004 |
| UPC | 78347287318 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Number | 783472 |
| Vendor Short Name | H-D |
| Voltage Rating | 24 VDC |
| WEIGHT | 0.242 Pound |
| Wattage | 30 W |
| Width | 0.82 in |
