| Manufacturer Name | SOLA/HEVI-DUTY ELEC |
| MfgPartNo | SVL524100 |
| Additional Information | RoHS Compliant; Hold Up Time 10 Millisecond at 115 Volt AC, 16 Millisecond at 230 Volt AC |
| Amperage Rating | 5 A |
| Application | ATM Machines;Heavy and Light Industrial Machinery;instrumentation;Scanners;Test and Measure Equipment;Vending Machines;Test and Measure Equipment, Scanner, Instrumentation, Printer Peripheral, ATM Machine, Semiconductor Fabrication Equipment, Vending Machine |
| Approval | UL 508/60950, UL (Canada and US), CSA C22.2, CE |
| Base Price | 0.0000 |
| Cable Size | Input Connector size range: 18-8 AWG (0.823-8.365 mm2) for solid conductors;Output Connector size range: 24-12 AWG (0.20-3.3 mm2) for solid conductors |
| Catalog Number | SVL524100 |
| Commerce Sector | Construction Materials |
| Commodity Code | 39610 |
| Commodity Description | Ac Power Supplies |
| Construction | Open |
| Control | DC OK Relay |
| Cooling Type | Convection |
| CountryOfOrigin | TH |
| DDCATEGORY | 2089 |
| Directory | CIS |
| Efficiency | 88;88 Percent |
| Enclosure | To be installed in an enclosure |
| Environmental Conditions | To be installed in a controlled environment |
| Families | 2089 |
| Family Description | Ac Power Supplies |
| Frequency Rating Maximum | 60 Hz |
| Frequency Rating Minimum | 50 Hz |
| Fuse Rating | Internally Fused |
| Height | 4.84 in |

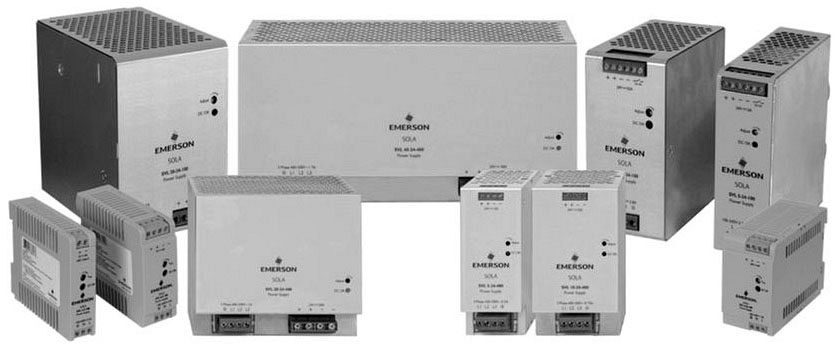

| Image Location | * Image |
| Industry | ELX |
| Input Current | 20 Amp at 115 Volt AC, 40 Amp at 230 Volt AC |
| Input Frequency | 50/60 Hertz |
| Input Voltage Range | 85 to 264 Volt AC |
| InvoiceDescription | 120W 24V DIN PS 85-264VAC;120W 24V PWR-SPLY |
| Item Number | 87323 |
| Length | 4.63 in |
| Long Description | POWER SUPPLY, METAL ENCASED MATERIAL; 1.57 INCH WIDTH X 4.63 INCH DEPTH X 4.84 INCH HEIGHT SIZE; 1 PHASE(S); UL 508/60950, UL (CANADA AND US), CSA C22.2, CE APPROVAL |
| MSDS Form Number | * |
| Material | Metal;Metal Encased |
| Model | SVL |
| Mounting | DIN Rail |
| Nominal Input Voltage | 100 to 240 Volt AC, 120 to 375 Volt DC |
| Noun | * |
| Number Of Phases | 1 |
| Operating Temperature | -20 to 70 Deg C |
| Output Current | 5 Amp |
| Output Power | 120 Watt |
| Output Voltage | 24 Volt |
| Phase | 1 |
| Product Description | 120W 24V PWR-SPLY |
| Product Keywords | WEBREADY |
| Product Name | Power supply units |
| ProductLine | H-D |
| Size | 1.57 Inch Width x 4.63 Inch Depth x 4.84 Inch Height |
| Special Features | Convection cooling;DC OK LED;DC OK Relay;Protection: short circuit, over voltage, overload, over temperature;Two year warranty;Universal Input |
| Standard | CE: IEC/EN 60950-1 2nd edition CB Scheme;UL Listed, Industrial Control Equipment for US and Canada: UL 508, CSA C22.2 No. 107.1;UL Recognized Component, ITE for US and Canada: UL 60950-1/CSA C22.2 60950-1 2nd edition |
| Type | SVL Essential Din Rail Series |
| UNSPSC | 39121004 |
| UPC | 78347287323 |
| Vendor Name | SOLA/HEVI-DUTY ELEC |
| Vendor Number | 783472 |
| Vendor Short Name | H-D |
| Voltage Rating | 24 VDC |
| WEIGHT | 1.19 Pound |
| Wattage | 120 W |
| Width | 1.57 in |
