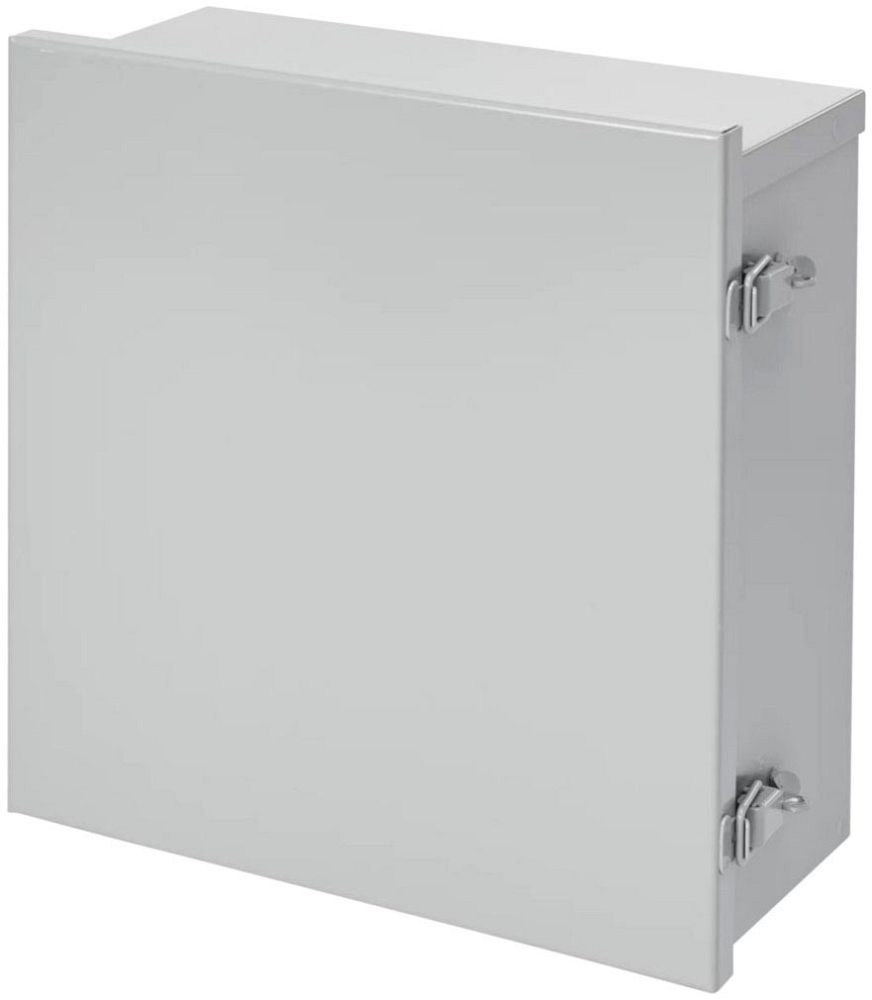

HOFF A10R86HCLO

Enclosure 10.00x8.00x6.00

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Enclosure 10.00x8.00x6.00

Mouse over image to zoom, click to enlarge

Description:
Enclosure 10.00x8.00x6.00

UPC:  78351038880

Part Number: A10R86HCLO

UNSPSC: 39121324

Status:  UNKNOWN

Your Price:  $108.00 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo A10R86HCLO
Additional Information RoHS/Reach Compliant; Applicable Standard IEC 60529
Application Controls and Drives;Power Distribution
Approval UL 50/50E, CUL, CSA C22.2
Base Price 0.0000
Body Thickness Imperial 16 ga
Bracket Width Imperial 5 in
Catalog Number A10R86HCLO
Color Gray;ANSI 61 Gray
Color Code ANSI 61
Commerce Sector Construction Materials
Commodity Code 36120
Commodity Description Nema Types 3 & 3r Metallic Enclosures, Boxes, Cabinets
CountryOfOrigin MX
Cover Type Lift-Off Hinged with Pin, Padlockable Draw Pull Catch
DDCATEGORY 1958
Depth 6;6 Inch
Depth Imperial 6 in
Depth Metric 152 mm
Directory CIS
Door Thickness Imperial 16 ga
Enclosure NEMA 3R, IP32
Families 1958
Family Description Nema Types 3 & 3r Metallic Enclosures, Boxes, Cabinets
Finish Galvanized;Galvanized, Polyester Powder Painted
Height 10;10 Inch
Height Imperial 10 in
Height Metric 254 mm
Hole Spacing Mounting Bracket Imperial 102 in
Hole Spacing Mounting Bracket Metric 4 mm
IP Rating IP32
Image Location * Image
Industry ELX
InvoiceDescription Enclosure 10.00x8.00x6.00;NM3R LIFTOFF HC BO
Item Number 38880
Long Description LIFT-OFF HINGED COVER ENCLOSURE, UNFLANGED TYPE; STEEL MATERIAL; GALVANIZED, POLYESTER POWDER PAINTED FINISH; ANSI 61 GRAY COLOR; 8 INCH; 10 INCH; 6 INCH; UL 50/50E, CUL, CSA C22.2 APPROVAL; EMBOSSED MOUNT MOUNTING; NEMA 3R, IP32 ENCLOSURE
MSDS Form Number *
Material Steel
Material Specification 16 Gauge
Model A3LO
Modification Services Yes
Mounting Embossed Mount
Mounting Imperial 11.12 in
Mounting Bracket Kit AMFK3RLO16
NEMA Rating 3R
Noun *
Overall Dimensions Imperial 12.12 x 9.25 in
Panel A8P8
Panel Mounting Kit APMK3RLO16
Panel Size Imperial 6.75 x 6.88 in
Panel Size Metric 171 x 175 mm
Product Description Enclosure 10.00x8.00x6.00
Product Keywords WEBREADY
Product Name Electrical general purpose enclosure
ProductLine HOFF
Protection Rating NEMA Type 3R
Size 10.00x8.00x6.00 in
Type Mild Steel Wall Mounted Industrial Enclosures;Unflanged
Type Number Type 3R
UNSPSC 39121324
UPC 78351038880
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 8 lb
Width 8 |;8 Inch
