| Manufacturer Name | NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC |
| MfgPartNo | A1210CHS |
| Additional Information | RoHS Compliant; Applicable Standard IEC 60529 |
| Application | Controls and Drives |
| Approval | UL 50/50E, CUL, CSA C22.2 |
| Back Panel | A12P10, A12P10G |
| Base Price | 0.0000 |
| Brand Name | nVent HOFFMAN |
| Catalog Number | A1210CHS |
| Color | Gray;ANSI 61 Gray |
| Color Code | ANSI 61 |
| Commerce Sector | Construction Materials |
| Commodity Code | 36190 |
| Commodity Description | Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets |
| Conductive Panel | A12P10G |
| CountryOfOrigin | MX |
| Cover Type | Short Sided, Continuous Hinged, Gasketed, Screw Clamp |
| DDCATEGORY | 1965 |
| Depth | 5;5 Inch |
| Directory | CIS |
| Enclosure | NEMA 12/13, IP65 |
| Families | 1965 |
| Family Description | Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets |
| Finish | Powder Coated;Polyester Powder Coated |
| Height | 12 Inch |
| Height Imperial | 12 in |
| Height Metric | 305 mm |
| IP Rating | IP65 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | CH Box 12.00x10.00x5.00;PIANO HINGE JIC BOX |
| Item Number | 55520 |

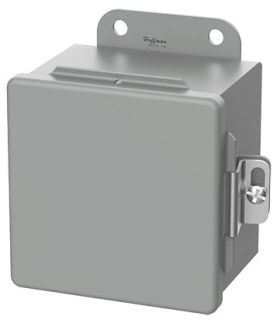

| Long Description | CONTINUOUS HINGE ENCLOSURE, 1-DOOR TYPE; MILD STEEL MATERIAL; POLYESTER POWDER COATED FINISH; ANSI 61 GRAY COLOR; 10 INCH; 12 INCH; 5 INCH; UL 50/50E, CUL, CSA C22.2 APPROVAL; WALL MOUNTING; NEMA 12/13, IP65 ENCLOSURE |
| MSDS Form Number | * |
| Material | Mild Steel |
| Material Specification | 14 Gauge |
| Model | A51CH |
| Modification Services | Yes |
| Mounting | Wall |
| Mounting Imperial | 12.75 x 8.00 in |
| Mounting Metric | 324 x 203 mm |
| NEMA Rating | 12 Indoor, dust-resistant |
| Noun | * |
| Overall Dimensions Imperial | 13.50 x 10.94 in |
| Overall Dimensions Metric | 343 x 278 mm |
| Panel | A12P10 |
| Panel Size Imperial | 10.75 x 8.88 in |
| Panel Size Metric | 273 x 226 mm |
| Product Description | CH Box 12.00x10.00x5.00 |
| Product Keywords | WEBREADY |
| Product Name | Electrical boxes |
| ProductLine | HOFF |
| Protection Rating | NEMA Type 12 |
| Size | 12.00x10.00x5.00 in |
| Thickness Imperial | 14 ga |
| Thickness Metric | 1.9 mm |
| Type | Mild Steel Industrial Terminal and Junction Boxes;1-Door |
| Type Number | Type 13 |
| UNSPSC | 39121303 |
| UPC | 78351055520 |
| Vendor Name | NVENT HOFFMAN |
| Vendor Number | 783510 |
| Vendor Short Name | HOFF |
| Weight Imperial | 11.2 lb |
| Width | 10 in;10 Inch |
