HOFF A14128CHQRFGW

Enclosure 14.00x12.00x8.00

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Enclosure 14.00x12.00x8.00

Mouse over image to zoom, click to enlarge

Description:

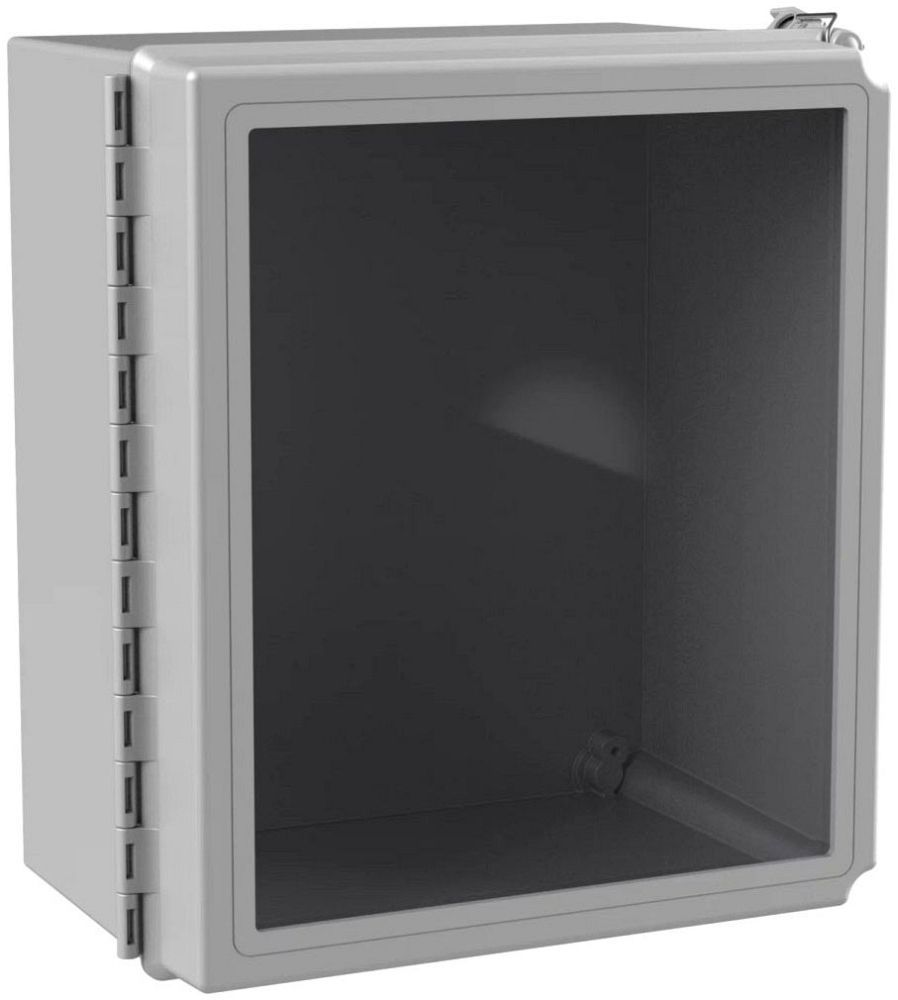

Enclosure 14.00x12.00x8.00

UPC:  78351031290

Part Number: A14128CHQRFGW

UNSPSC: 39121324

Status:  UNKNOWN

Retail Price:  $394.00 / EA
Your Price:  $374.30 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo A14128CHQRFGW
Additional Information RoHS/Reach Compliant; Applicable Standard IEC 60529
Aluminum Panel A14P12AL
Application Controls and Drives;Corrosive Environments
Approval UL 508A, CUL, CSA C22.2
Back Panel A14P12, A14P12AL
Base Price 0.0000
Catalog Number A14128CHQRFGW
Color Gray;Light Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36230
Commodity Description Nema Types 4, 4x, 12 & 13 Non-Metallic Enclosures, Boxes & Cabinets
CountryOfOrigin US
Cover Style Window
Cover Type Continuous Hinged, Hinge Pin and Bail, Gasketed, Quick Release Latch
DDCATEGORY 1968
Depth 8;8 Inch
Depth Imperial 8 in
Depth Metric 203 mm
Directory CIS
Enclosure NEMA 4/4X/12/13, IP66
Families 1968
Family Description Nema Types 4, 4x, 12 & 13 Non-Metallic Enclosures, Boxes & Cabinets
Finish Smooth Matte
Height 14;14 Inch
Height Imperial 14 in
Height Metric 356 mm
IP Rating IP66
Image Location * Image
Industry ELX
InvoiceDescription Enclosure 14.00x12.00x8.00;F-GLASS BOX/CVR
Item Number 31290
Latch Type Quick Release
Long Description NON-METALLIC ENCLOSURE, 1-WINDOW DOOR TYPE; COMPRESSION MOLDED FIBERGLASS MATERIAL; LIGHT GRAY COLOR; 12 INCH; 14 INCH; 8 INCH; UL 508A, CUL, CSA C22.2 APPROVAL; BRACKET MOUNTING; NEMA 4/4X/12/13, IP66 ENCLOSURE
MSDS Form Number *
Material Compression Molded Fiberglass
Material Quality Fiberglass
Model A48
Modification Services Yes
Mounting Bracket
Mounting Imperial 14.94 x 10.00 in
NEMA Rating 4X
Noun *
Overall Dimensions Imperial 14.55 x 12.55 in
Panel Size Imperial 12.75 x 10.88 in
Panel Size Metric 324 x 276 mm
Product Description Enclosure 14.00x12.00x8.00
Product Keywords WEBREADY
Product Name Electrical general purpose enclosure
ProductLine HOFF
Protection Rating NEMA Type 12
Size 14.00x12.00x8.00 in
Steel Panel A14P12
Thickness Imperial 0.16 in
Type Fiberglass and Thermoplastic Wall Mounted Industrial Enclosures;1-Window Door
Type Number Type 13
UNSPSC 39121324
UPC 78351031290
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 8.4 lb
Width 12;12 Inch
Width Imperial 12 in
Width Metric 305 mm

Resources

CatalogNumber A14128CHQRFGW
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
