HOFF A161410CH

Encl Hng Clmp Type 12 16x14x10in

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Encl Hng Clmp Type 12 16x14x10in

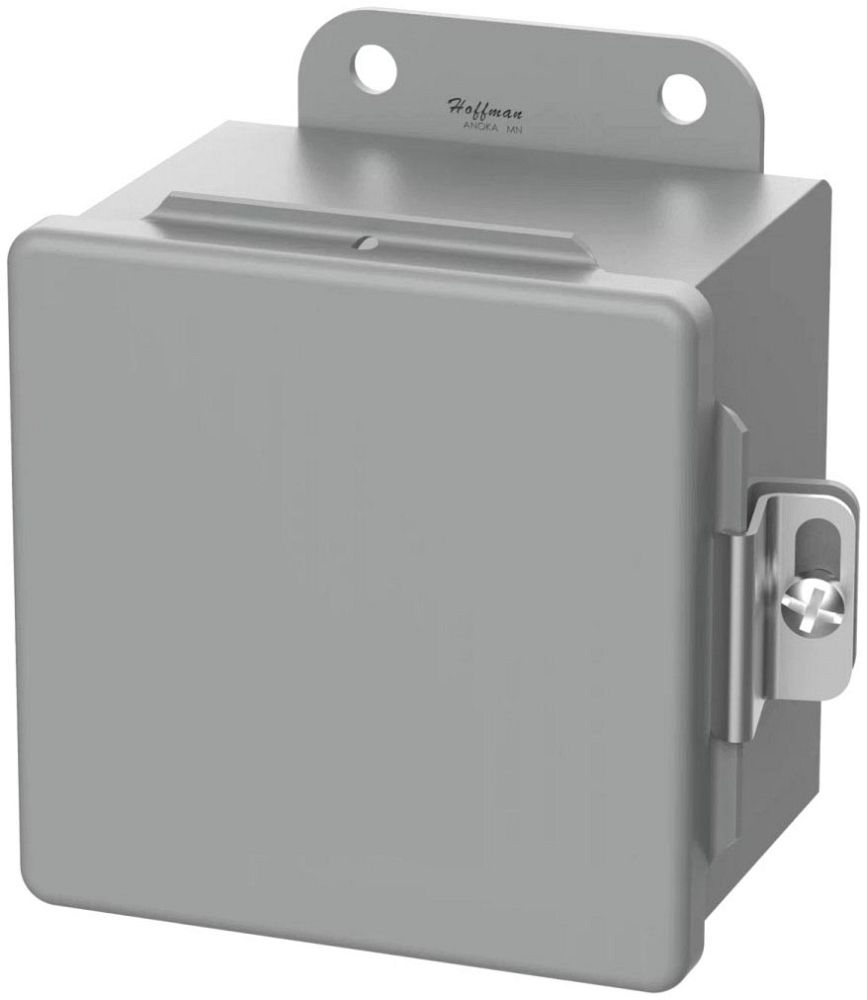

Mouse over image to zoom, click to enlarge

Description:
Encl Hng Clmp Type 12 16x14x10in

UPC:  78351054940

Part Number: A161410CH

UNSPSC: 39121303

Status:  UNKNOWN

Retail Price:  $342.00 / EA
Your Price:  $319.20 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo A161410CH
Additional Information RoHS Compliant; Applicable Standard IEC 60529
Application Controls and Drives
Approval UL 50/50E, CUL, CSA C22.2
Back Panel A16P14, A16P14G
Base Price 0.0000
Brand Name nVent HOFFMAN
Catalog Number A161410CH
Color Gray;ANSI 61 Gray
Color Code ANSI 61
Commerce Sector Construction Materials
Commodity Code 36190
Commodity Description Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets
Conductive Panel A16P14G
CountryOfOrigin MX
Cover Type Continuous Hinged, Gasketed, Screw Clamp
DDCATEGORY 1965
Depth 10;10 Inch
Directory CIS
Enclosure NEMA 12/13, IP65
Families 1965
Family Description Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets
Finish Powder Coated;Polyester Powder Coated
Height 16 Inch
Height Imperial 16 in
Height Metric 406 mm
IP Rating IP65
Image Location * Image
Industry ELX
InvoiceDescription CH Box 16.00x14.00x10.00;PIANO HINGE JIC BOX
Item Number 54940
Long Description CONTINUOUS HINGE ENCLOSURE, 1-DOOR TYPE; MILD STEEL MATERIAL; POLYESTER POWDER COATED FINISH; ANSI 61 GRAY COLOR; 14 INCH; 16 INCH; 10 INCH; UL 50/50E, CUL, CSA C22.2 APPROVAL; WALL MOUNTING; NEMA 12/13, IP65 ENCLOSURE
MSDS Form Number *
Material Mild Steel
Material Specification 14 Gauge
Model A51CH
Modification Services Yes
Mounting Wall
Mounting Imperial 16.75 x 12.00 in
Mounting Metric 425 x 305 mm
NEMA Rating 12 Indoor, dust-resistant
Noun *
Overall Dimensions Imperial 17.50 x 14.94 in
Overall Dimensions Metric 445 x 379 mm
Panel A16P14
Panel Size Imperial 14.75 x 12.88 in
Panel Size Metric 375 x 327 mm
Product Description Encl Hng Clmp Type 12 16x14x10in
Product Keywords WEBREADY
Product Name Electrical boxes
ProductLine HOFF
Protection Rating NEMA Type 12
Size 16.00x14.00x10.00 in
Thickness Imperial 14 ga
Thickness Metric 1.9 mm
Type Mild Steel Industrial Terminal and Junction Boxes;1-Door
Type Number Type 13
UNSPSC 39121303
UPC 78351054940
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 25.1 lb
Width 14;14 Inch
