HOFF A161410CHNF

Continuous Hinge w Clamps 4

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Continuous Hinge w Clamps 4

Mouse over image to zoom, click to enlarge

Description:

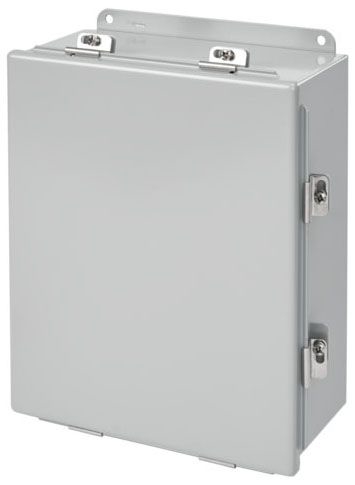

Continuous Hinge w Clamps 4

UPC:  78351029253

Part Number: A161410CHNF

UNSPSC: 39121303

Status:  UNKNOWN

Retail Price:  $422.00 / EA
Your Price:  $393.87 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo A161410CHNF
Additional Information RoHS/Reach Compliant; Back Panel A16P14, A16P14G; Applicable Standard IEC 60529
Application Controls and Drives
Approval UL 50/50E, CUL, CSA C22.2
Base Price 0.0000
Brand Name nVent HOFFMAN
Catalog Number A161410CHNF
Color Gray;ANSI 61 Gray
Color Code ANSI 61
Commerce Sector Construction Materials
Commodity Code 36130
Commodity Description Nema Type 4 Metallic Enclosures, Boxes, Cabinets
Conductive Panel A16P14G
CountryOfOrigin MX
Cover Type Continuous Hinged, Stainless Steel Screw-Down Clamp, Oil Resistant Gasketed, Stainless Steel Hinge Pin
DDCATEGORY 1959
Depth 10;10 Inch
Directory CIS
Enclosure NEMA 4/12/13, IP66
Families 1959
Family Description Nema Type 4 Metallic Enclosures, Boxes, Cabinets
Finish Powder Coated;Polyester Powder Painted
Height 16 Inch
Height Imperial 16 in
Height Metric 406 mm
IP Rating IP66
Image Location * Image
Industry ELX
InvoiceDescription Continuous Hinge w Clamps 4;JUNCTION BOX
Item Number 29253
Long Description JUNCTION BOX, 1-DOOR TYPE; MILD STEEL MATERIAL; POLYESTER POWDER PAINTED FINISH; ANSI 61 GRAY COLOR; 14 INCH; 16 INCH; 10 INCH; UL 50/50E, CUL, CSA C22.2 APPROVAL; EXTERNAL WELDED-ON BRACKET MOUNTING; NEMA 4/12/13, IP66 ENCLOSURE
MSDS Form Number *
Material Mild Steel
Material Specification 14 Gauge
Model A51NF
Modification Services Yes
Mounting External Welded-On Bracket
Mounting Imperial 16.75 x 12.00 in
Mounting Metric 425 x 305 mm
NEMA Rating 12 Indoor, dust-resistant
Noun *
Overall Dimensions Imperial 17.50 x 14.94 in
Overall Dimensions Metric 445 x 379 mm
Panel A16P14
Panel Size Imperial 14.75 x 12.88 in
Panel Size Metric 375 x 327 mm
Product Description Continuous Hinge w Clamps 4
Product Keywords WEBREADY
Product Name Electrical boxes
ProductLine HOFF
Protection Rating NEMA Type 12
Service Type Indoor/Outdoor
Size 16.00x14.00x10.00 in
Thickness Imperial 14 ga
Thickness Metric 1.9 mm
Type Mild Steel Industrial Terminal and Junction Boxes;1-Door
Type Number Type 4
UNSPSC 39121303
UPC 78351029253
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 27 lb
Width 14;14 Inch

Resources

CatalogNumber A161410CHNF
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
