HOFF A20H16BLP3PT

Encl Cont Hng 3-Pt Latch MS GY 20x16x8

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Encl Cont Hng 3-Pt Latch MS GY 20x16x8

Mouse over image to zoom, click to enlarge

Description:

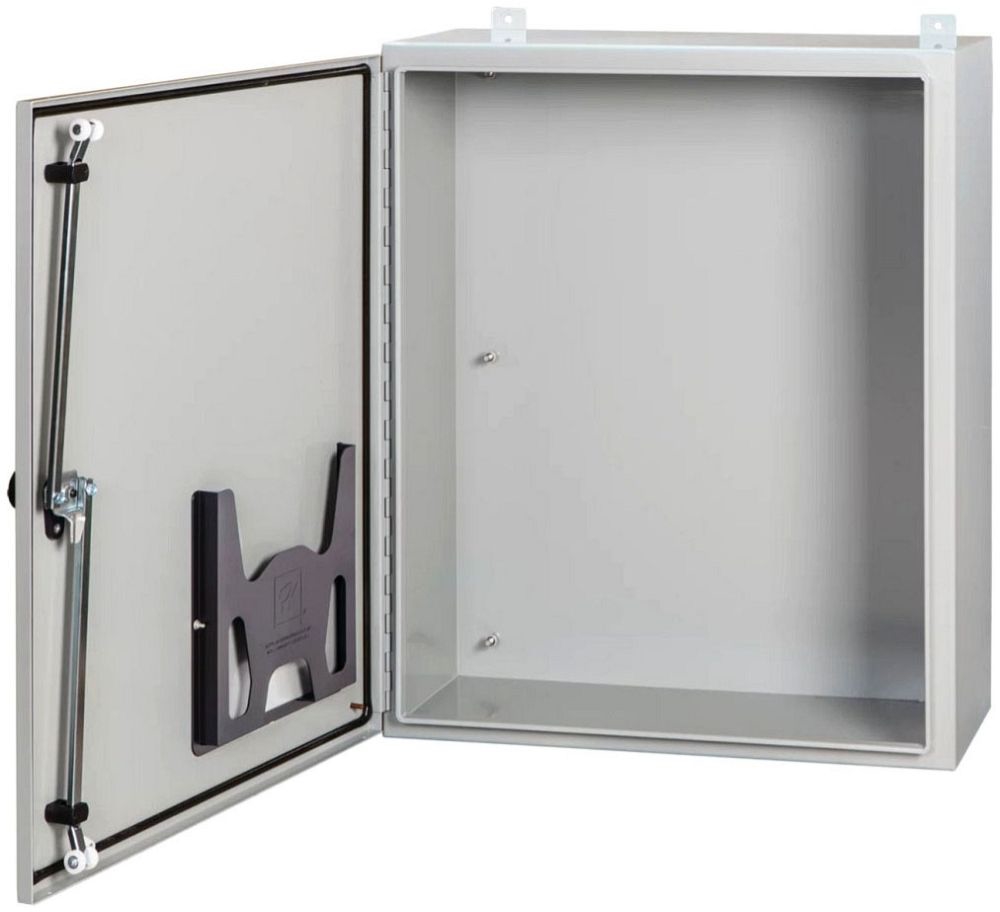

Encl Cont Hng 3-Pt Latch MS GY 20x16x8

UPC:  78351027904

Part Number: A20H16BLP3PT

UNSPSC: 39121324

Status:  UNKNOWN

Retail Price:  $883.00 / EA
Your Price:  $838.85 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo A20H16BLP3PT
Additional Information RoHS/Reach Compliant; Includes Small Data Pocket; Applicable Standard IEC 60529
Application Controls and Drives
Approval UL 508A, CUL, CSA C22.2
Back Panel A20P16, A20P16G
Base Price 0.0000
Catalog Number A20H16BLP3PT
Color Gray;ANSI 61 Gray
Color Code ANSI 61
Commerce Sector Construction Materials
Commodity Code 36130
Commodity Description Nema Type 4 Metallic Enclosures, Boxes, Cabinets
Conductive Panel A20P16G
CountryOfOrigin US
Cover Type Continuous Hinged, Seamless Foam-In-Place Gasketed, 3-Point Latch
DDCATEGORY 1959
Data Pocket Small
Depth 8;8 Inch
Depth Imperial 8 in
Depth Metric 203 mm
Directory CIS
Enclosure NEMA 3/4/12/13, IP66
Families 1959
Family Description Nema Type 4 Metallic Enclosures, Boxes, Cabinets
Finish Powder Coated
Height 20;20 Inch
Height Imperial 20 in
Height Metric 508 mm
IP Rating IP66
Image Location * Image
Industry ELX
InvoiceDescription Wall Mount Type 4 Encl w 3pt;ENCLOSURE
Item Number 27904
Long Description ENCLOSURE, 1-DOOR TYPE; MILD STEEL MATERIAL; ANSI 61 GRAY COLOR; 16 INCH; 20 INCH; 8 INCH; UL 508A, CUL, CSA C22.2 APPROVAL; WALL MOUNTING; NEMA 3/4/12/13, IP66 ENCLOSURE; CONTINUOUS HINGED, SEAMLESS FOAM-IN-PLACE GASKETED, 3-POINT LATCH COVER TYPE
MSDS Form Number *
Material Steel;Mild Steel
Material Specification 16 Gauge (Body)
Model A4W3
Modification Services No
Mounting Wall
NEMA Rating 12
Noun *
Panel A20P16
Panel Size Imperial 17.00 x 13.00 in
Panel Size Metric 432 x 330 mm
Product Description Encl Cont Hng 3-Pt Latch MS GY 20x16x8
Product Keywords WEBREADY
Product Name Electrical general purpose enclosure
Product Type Disconnect
ProductLine HOFF
Protection Rating NEMA Type 12
Service Type Indoor/Outdoor
Size 20.00 x16.00 x8.00 in
Thickness Imperial 14 ga
Type Mild Steel Wall Mounted Industrial Enclosures;1-Door
Type Number Type 4
UNSPSC 39121324
UPC 78351027904
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 31.7 lb
Width 16;16 Inch
Width Imperial 16 in
Width Metric 406 mm

Resources

CatalogNumber A20H16BLP3PT
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
