HOFF A30SA2608LPPL

Type 12 SA Disc. Enc. w Handle

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Type 12 SA Disc. Enc. w Handle

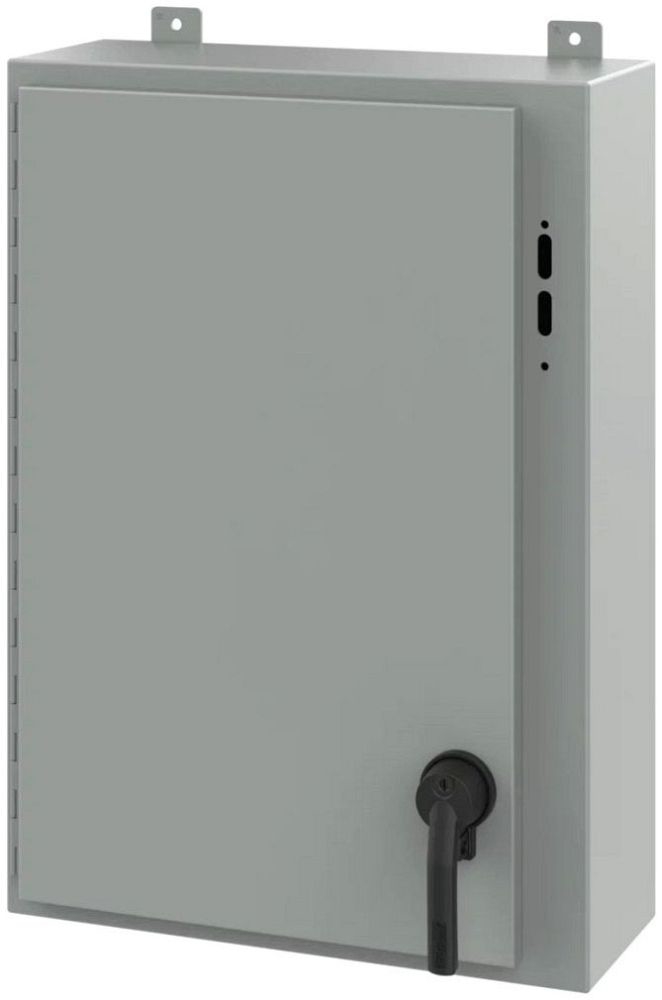

Mouse over image to zoom, click to enlarge

Description:
Type 12 SA Disc. Enc. w Handle

UPC:  78351040369

Part Number: A30SA2608LPPL

UNSPSC: 39121324

Status:  UNKNOWN

Retail Price:  $1,180.00 / EA
Your Price:  $1,121.00 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo A30SA2608LPPL
Additional Information RoHS/Reach Compliant; Includes PowerGlide Handle and Latching Hardware, High Impact Thermoplastic Data Pocket, Latch Pivot Post and Cover Interlock Bracket Welded to Door, Cover Latch Bar for Door, Installation Instruction; Applicable Standard IEC 60529
Application Arc Flash Safety;Controls and Drives;Power Distribution
Approval UL 508A, CUL, CSA C22.2
Back Panel A30P24, A30P24G
Base Price 0.0000
Catalog Number A30SA2608LPPL
Color White Inside/ANSI 61 Gray Outside (Body), ANSI 61 Gray (Door)
Commerce Sector Construction Materials
Commodity Code 36190
Commodity Description Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets
Conductive Panel A30P24G
CountryOfOrigin US
Cover Type Continuous Hinged, Oil Resistant Gasketed
DDCATEGORY 1965
Data Pocket Size Imperial 12.00 x 12.00 in
Depth 8;8 Inch
Depth Imperial 8 in
Depth Metric 203 mm
Directory CIS
Enclosure NEMA 12/13, IP65
Exterior Color Gray
Exterior Color Code ANSI 61
Families 1965
Family Description Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets
Finish Powder Coated;Painted
Handle Included Yes
Height 30;30 Inch
Height Imperial 30 in
Height Metric 762 mm
IP Rating IP65
Image Location * Image
Industry ELX
Interior Color White
InvoiceDescription Type 12 SA Disc. Enc. w Handle;NM12 DISC ENC
Item Number 40369
Long Description METALLIC ENCLOSURE, 1-DOOR, CIRCUIT BREAKER/DISCONNECT SWITCH TYPE; MILD STEEL MATERIAL; PAINTED FINISH; WHITE INSIDE/ANSI 61 GRAY OUTSIDE (BODY), ANSI 61 GRAY (DOOR) COLOR; 25.38 INCH; 30 INCH; 8 INCH; UL 508A, CUL, CSA C22.2 APPROVAL
MSDS Form Number *
Material Steel;Mild Steel
Material Specification 14 Gauge
Model A25
Modification Services Yes
Mounting Wall, External Welded-On Bracket
NEMA Rating 12
Noun *
Panel A30P24
Panel Size Imperial 27.00 x 21.00 in
Panel Size Metric 686 x 533 mm
Product Description Type 12 SA Disc. Enc. w Handle
Product Keywords WEBREADY
Product Name Electrical general purpose enclosure
ProductLine HOFF
Protection Rating NEMA Type 12
Size 30.00x25.38x8.00 in
Thickness Imperial 14 ga
Type Mild Steel Wall Mounted Industrial Disconnect Enclosures;1-Door, Circuit Breaker/Disconnect Switch
Type Number Type 13
UNSPSC 39121324
UPC 78351040369
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 45 lb
Width 25.38;25.38 Inch
Width Imperial 25.38 in
Width Metric 645 mm
With Or Without Handle With
