HOFF A484812WFLP

Encl Cont Hng 2Dr Handle MS GY 48x48x12

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC

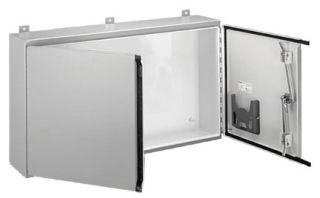

Encl Cont Hng 2Dr Handle MS GY 48x48x12

Mouse over image to zoom, click to enlarge

Description:
Encl Cont Hng 2Dr Handle MS GY 48x48x12

UPC:  78351027650

Part Number: A484812WFLP

UNSPSC: 39121324

Status:  UNKNOWN

Your Price:  $2,604.00 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo A484812WFLP
Additional Information Lead-Free; RoHS Compliant; Applicable Standard IEC 60529
Application Controls and Drives
Approval UL 508A, CUL, CSA C22.2
Back Panel A48P48, A48P48G
Base Price 0.0000
Catalog Number A484812WFLP
Color White Inside/ANSI 61 Gray Outside
Commerce Sector Construction Materials
Commodity Code 36180
Commodity Description Nema Type 12 Metallic Enclosures, Boxes, Cabinets
Conductive Panel A48P48G
CountryOfOrigin US
Cover Type Continuous Hinged with Removable Pin, Overlapping Gasketed, 3-Point Latch and Key Locking Handle
DDCATEGORY 1964
Depth 12;12 Inch
Depth Imperial 12 in
Depth Metric 305 mm
Directory CIS
Enclosure NEMA 12, IP65
Exterior Color Gray
Exterior Color Code ANSI 61
Families 1964
Family Description Nema Type 12 Metallic Enclosures, Boxes, Cabinets
Finish Powder Coated
Height 48;48 Inch
Height Imperial 48 in
Height Metric 1,219 mm
IP Rating IP55
Image Location * Image
Industry ELX
Interior Color White
InvoiceDescription Type 12 Encl. 48.00x48.00x12.0;NEMA12 2DOOR ENCL
Item Number 27650
Long Description METALLIC ENCLOSURE, 2-DOOR TYPE; STEEL MATERIAL; WHITE INSIDE/ANSI 61 GRAY OUTSIDE COLOR; 48 INCH; 48 INCH; 12 INCH; UL 508A, CUL, CSA C22.2 APPROVAL; EXTERNAL BRACKET, WALL MOUNTING; NEMA 12, IP65 ENCLOSURE
MSDS Form Number *
Material Steel
Material Specification 14 Gauge
Model A12
Modification Services Yes
Mounting External Bracket, Wall
NEMA Rating 12
Noun *
Panel A48P48
Panel Gauge 10
Panel Size Imperial 44.00 x 44.00 in
Panel Size Metric 1118 x 1118 mm
Product Description Encl Cont Hng 2Dr Handle MS GY 48x48x12
Product Keywords WEBREADY
Product Name Electrical general purpose enclosure
ProductLine HOFF
Protection Rating NEMA Type 12
Size 48.00x48.00x12.00 in
Stiffener Body 0
Thickness Imperial 14 ga
Type Mild Steel Wall Mounted Industrial Enclosures;2-Door
Type Number Type 12
UNSPSC 39121324
UPC 78351027650
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 176 lb
Width 48;48 Inch
Width Imperial 48 in
Width Metric 1,219 mm

Resources

CatalogNumber A484812WFLP
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
