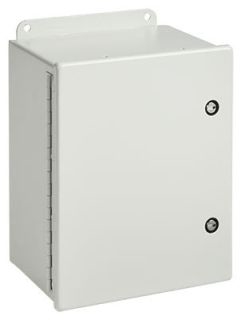

HOFF A604CHFL

J Box, Type 4,12, Fast Latch

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
J Box, Type 4,12, Fast Latch

Mouse over image to zoom, click to enlarge

Description:
J Box, Type 4,12, Fast Latch

UPC:  78351014873

Part Number: A604CHFL

UNSPSC: 39121324

Status:  UNKNOWN

Retail Price:  $139.00 / EA
Log In for Pricing



Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo A604CHFL
Additional Information Applicable Standard IEC 60529; ROHS Compliant
Application Controls and Drives
Approval UL 508A, CUL, CSA C22.2
Catalog Number A604CHFL
Color Gray;RAL 7035 Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36160
Commodity Description Nema Types 4 & 12 Metallic Enclosures, Boxes, Cabinets
Conductive Panel A6P4G
CountryOfOrigin MX
Cover Type Continuous Hinge, Quarter Turn Slotted Latch
DDCATEGORY 1962
Depth 3;3 Inch
Depth Imperial 3 in
Depth Metric 76 mm
Directory CIS
Enclosure NEMA 4/12, IP66
Families 1962
Family Description Nema Types 4 & 12 Metallic Enclosures, Boxes, Cabinets
Finish Powder Coated;Polyester Powder Painted
Height 6;6 Inch
Height Imperial 6 in
Height Metric 152 mm
IP Rating IP66
Image Location * Image
Industry ELX
InvoiceDescription J Box, Type 4,12, Fast Latch;QTR TRN LATCH J-BOX
Item Number 14873
Latch Quantity 1
Long Description METALLIC JUNCTION BOX, STEEL MATERIAL; POLYESTER POWDER PAINTED FINISH; RAL 7035 GRAY COLOR; 4 INCH; 6 INCH; 3 INCH; UL 508A, CUL, CSA C22.2 APPROVAL; EXTERNAL BRACKET, WALL MOUNTING; NEMA 4/12, IP66 ENCLOSURE
MSDS Form Number *
Material Steel
Material Specification 16 Gauge
Model A51FL
Modification Services Yes
Mounting External Bracket, Wall
Mounting Imperial 6.75 x 2.00 in
NEMA Rating 12
Noun *
Overall Dimensions Imperial 7.50 x 4.41 in
Panel A6P4
Panel Size Imperial 4.88 x 2.88 in
Panel Size Metric 124 x 73 mm
Product Description J Box, Type 4,12, Fast Latch
Product Keywords WEBREADY
Product Name Electrical general purpose enclosure
ProductLine HOFF
Protection Rating NEMA Type 12
Size 6.00x4.00x3.00 in
Thickness Imperial 16 ga
Type Mild Steel Terminal and Junction Boxes
Type Number Type 4
UNSPSC 39121324
UPC 78351014873
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 2.54 lb
Width 4;4 Inch
Width Imperial 4 in
Width Metric 102 mm

Resources

CatalogNumber A604CHFL
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
