HOFF A604CHQR

Encl Ct Hg QR Lch Typ12 GY MS 6x4x3

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Encl Ct Hg QR Lch Typ12 GY MS 6x4x3

Mouse over image to zoom, click to enlarge

Description:
Encl Ct Hg QR Lch Typ12 GY MS 6x4x3

UPC:  78351056830

Part Number: A604CHQR

UNSPSC: 39121303

Status:  UNKNOWN

Retail Price:  $103.00 / EA
Your Price:  $96.14 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo A604CHQR
Additional Information Applicable Standard IEC 60529; ROHS Compliant
Application Controls and Drives
Approval UL 508A, CUL, CSA C22.2
Back Panel A6P4, A6P4G
Base Price 0.0000
Brand Name nVent HOFFMAN
Catalog Number A604CHQR
Color Gray;ANSI 61 Gray
Color Code ANSI 61
Commerce Sector Construction Materials
Commodity Code 36190
Commodity Description Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets
Conductive Panel A6P4G
CountryOfOrigin MX
Cover Type Continuous Hinge, Gasketed, Quick Release Latch
DDCATEGORY 1965
Depth 3;3 Inch
Directory CIS
Enclosure NEMA 12/13, IP65
Families 1965
Family Description Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets
Finish Powder Coated;Polyester Powder Painted
Height 6 Inch
Height Imperial 6 in
Height Metric 152 mm
IP Rating IP65
Image Location * Image
Industry ELX
InvoiceDescription CHQR Box 6.00x4.00x3.00;PIANO HINGE JIC BOX
Item Number 56830

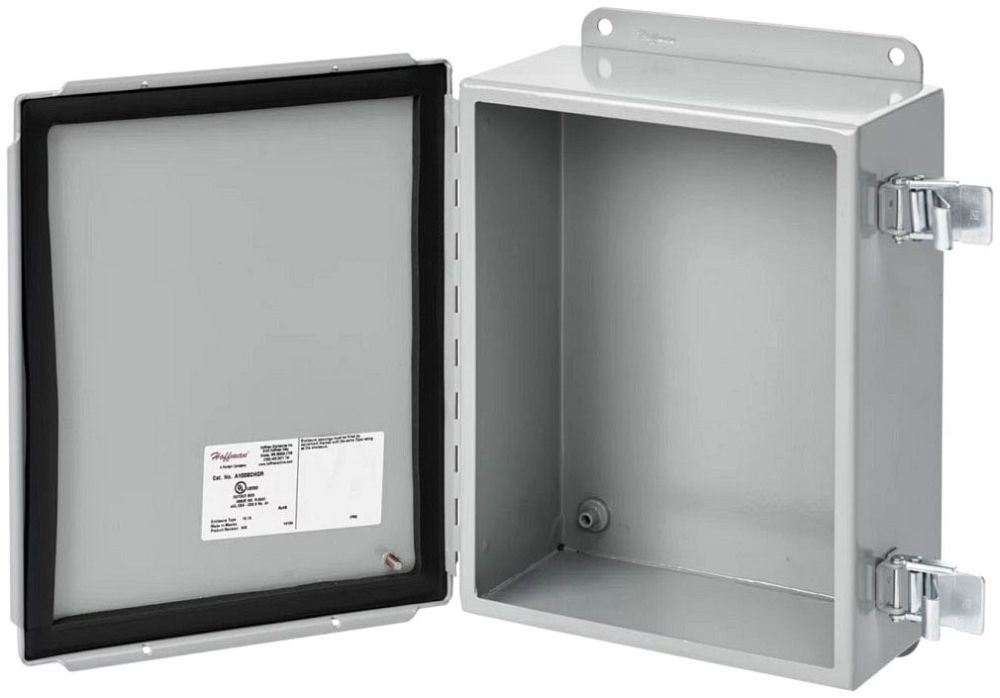

Long Description CONTINUOUS HINGE JUNCTION BOX, ONE DOOR TYPE; STEEL MATERIAL; POLYESTER POWDER PAINTED FINISH; ANSI 61 GRAY COLOR; 4 INCH; 6 INCH; 3 INCH; UL 508A, CUL, CSA C22.2 APPROVAL; BRACKET MOUNTING; NEMA 12/13, IP65 ENCLOSURE
MSDS Form Number *
Material Mild Steel;Steel
Material Specification 16 Gauge
Model A51
Modification Services Yes
Mounting Bracket
Mounting Imperial 6.75 x 2.00 in
Mounting Metric 171 x 51 mm
NEMA Rating 12 Indoor, dust-resistant
Noun *
Overall Dimensions Imperial 7.50 x 4.81 in
Overall Dimensions Metric 191 x 122 mm
Panel A6P4
Panel Size Imperial 4.88 x 2.88 in
Panel Size Metric 124 x 73 mm
Product Description Encl Ct Hg QR Lch Typ12 GY MS 6x4x3
Product Keywords WEBREADY
Product Name Electrical boxes
ProductLine HOFF
Protection Rating NEMA Type 12
Size 6.00x4.00x3.00 in
Thickness Imperial 16 ga
Thickness Metric 1.52 mm
Type Mild Steel Industrial Terminal and Junction Boxes;One Door
Type Number Type 13
UNSPSC 39121303
UPC 78351056830
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 2.6 lb
Width 4;4 Inch
