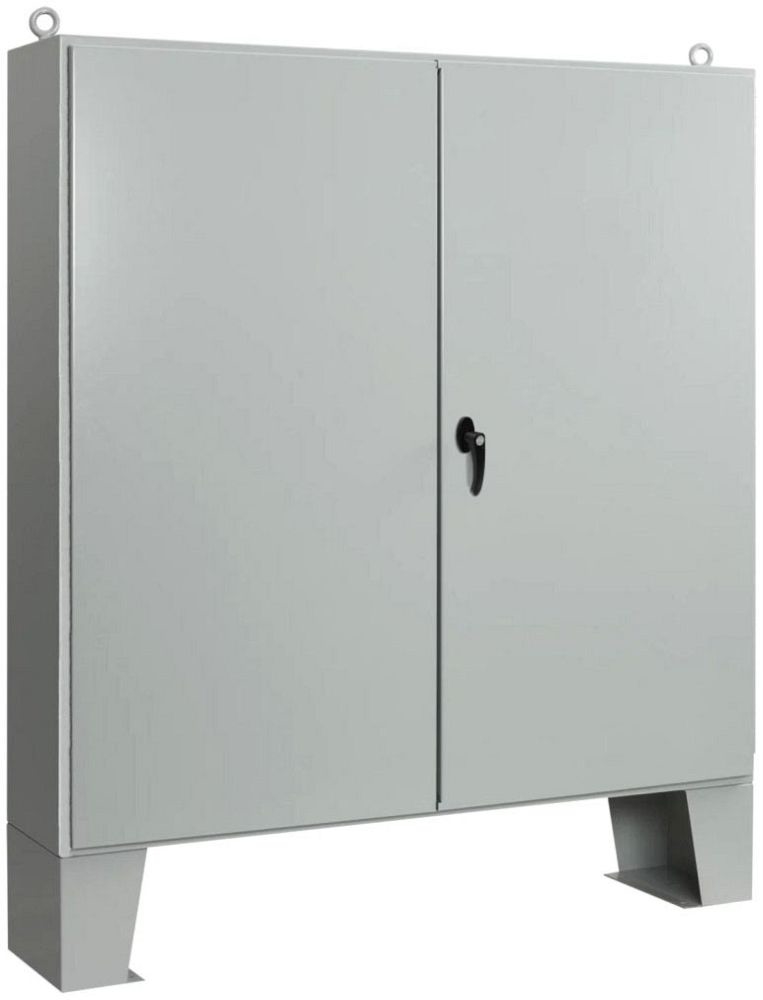

HOFF A606024LP

Encl FLS GY MS Typ12 Wht Insd 60x60x24

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Encl FLS GY MS Typ12 Wht Insd 60x60x24

Mouse over image to zoom, click to enlarge

Description:
Encl FLS GY MS Typ12 Wht Insd 60x60x24

UPC:  78351026330

Part Number: A606024LP

UNSPSC: 39121307

Status:  UNKNOWN

Retail Price:  $4,921.00 / EA
Your Price:  $4,674.95 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo A606024LP
Additional Information APPLICABLE STANDARD IEC 60529; APPLICATION ELECTRICAL AND ELECTRONIC CONTROL COMPONENT, INSTRUMENT; ENVIRONMENTAL CONDITIONS DIRT, DRIPPING WATER, DUST, OIL; INCLUSION GROUNDING STUD, LIFTING EYE, THERMOPLASTIC DATA POCKET; PANEL COLOR WHITE
Application Controls and Drives;Power Distribution
Approval UL 508, CSA, JIC
Back Panel A-60P60
Base Price 0.0000
Brand Name Hoffman[R]
Catalog Number A606024LP
Color Gray;WHITE INSIDE, ANSI 61 GRAY OUTSIDE
Color Code ANSI 61
Commerce Sector Construction Materials
Commodity Code 36180
Commodity Description Nema Type 12 Metallic Enclosures, Boxes, Cabinets
Conductive Panel A60P60G
CountryOfOrigin MX
DDCATEGORY 1964
Depth 24.06 INCH
Depth Imperial 24.06 in
Directory CIS
Door Mounting HEAVY GAUGE CONTINUOUS HINGE, 3 POINT LATCH WITH ROLLER AND KEY LOCKING HANDLE, OVERLAPPING GASKETED
Door Type TWO DOOR SINGLE ACCESS
Exterior Color Gray
Exterior Color Code ANSI 61
Families 1964
Family Description Nema Type 12 Metallic Enclosures, Boxes, Cabinets
Finish Powder Coated;POLYESTER POWDER COATED OVER PHOSPHATIZED SURFACE
Height 60.06;60.06 INCH
Height Imperial 60.06 in
Height In Inch 60.06
Height In Inch UOM in
Height In Mm 1525.52
Height In Mm UOM mm
IP Rating IP55
Image Location * Image
Industry ELX
Interior Color White
InvoiceDescription Type 12 Encl. 60.06x60.06x24.0;NEMA12 2DOOR ENCL
Long Description METALLIC ENCLOSURE, TWO DOOR TYPE; STAINLESS STEEL/STEEL MATERIAL; POLYESTER POWDER COATED OVER PHOSPHATIZED SURFACE FINISH; WHITE INSIDE, ANSI 61 GRAY OUTSIDE COLOR; 60.06 INCH; 60.06 WIDTH IN INCH; 60.06 INCH; 60.06 HEIGHT IN INCH; 24.06 INCH
MSDS Form Number *
Material Mild Steel;Steel;STAINLESS STEEL/STEEL
Material Specification 12 GAUGE
Modification Services Yes
Mounting FLOOR
Mounting Hardware (2) 12 INCH LEGS
NEMA Rating 12 Indoor, dust-resistant
Panel A60P60
Panel Gauge 11
Panel Size Imperial 56.00 x 56.00 in
Product Description Encl FLS GY MS Typ12 Wht Insd 60x60x24
Product Keywords WEBREADY
Product Name Floor boxes
ProductLine HOFF
Protection Rating NEMA Type 12
Service Type INDOOR/OUTDOOR
Size 60.06x60.06x24.06 in
Stiffener Imperial 21 in
Thickness Imperial 12 ga
Type Mild Steel Freestanding Industrial Enclosures;TWO DOOR
Type Number Type 12
UNSPSC 39121307
UPC 78351026330
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 555 lb
Width 60.06;60.06 INCH
Width Imperial 60.06 in
Width In Inch 60.06
Width In Inch UOM in

Resources

CatalogNumber A606024LP
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
